Youth: Teenzone Std Units

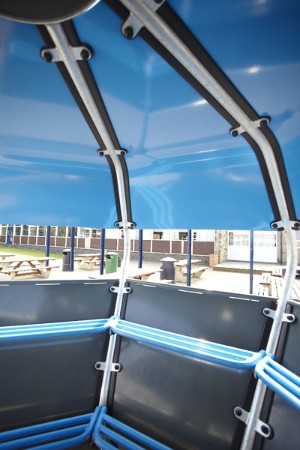

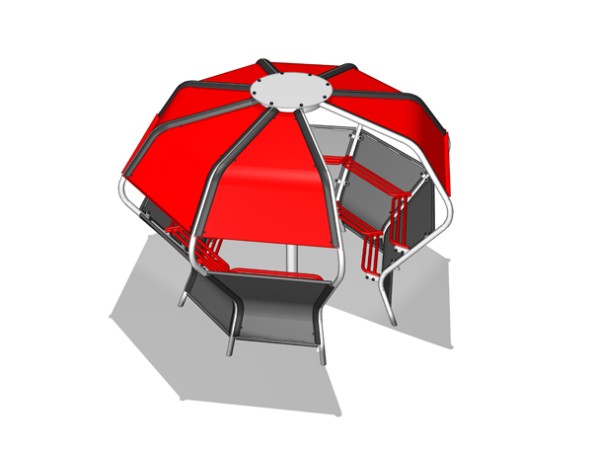

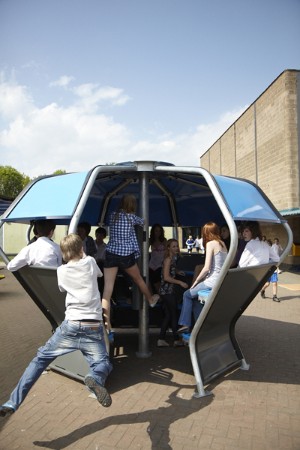

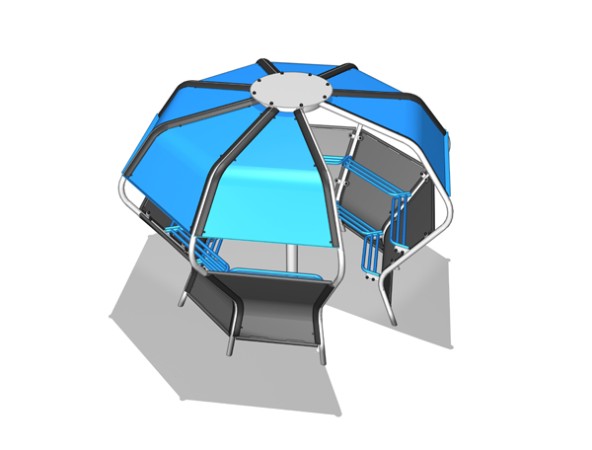

Pod Shelter



YOU070 Pod Shelter

A modular, all steel construction makes this Youth Shelter highly resilient and easy to clean. With an overhanging roof, sealed with specially designed waterproof rubber strips it keeps all users dry and provides great wind protection. Designed and developed through a series of consultations with a local authority and two secondary schools. It is available in two colour schemes, Red/Grey and Blue/grey.



Unit includes
QTY


Complete
- No Additional Activities Listed



Safety Surfacing


No safety surfacing required

Recommended Area
46 m²
Perimeter
24.7 m


Side Elevation


Total Height
2.54 m
Seat Height
1 m
Lower Level Seating Height
0.53 m

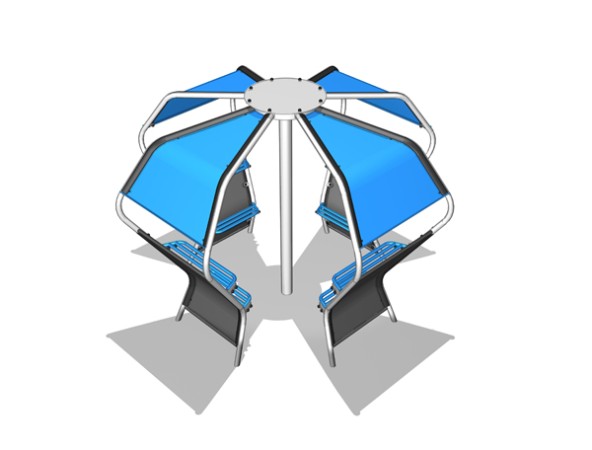

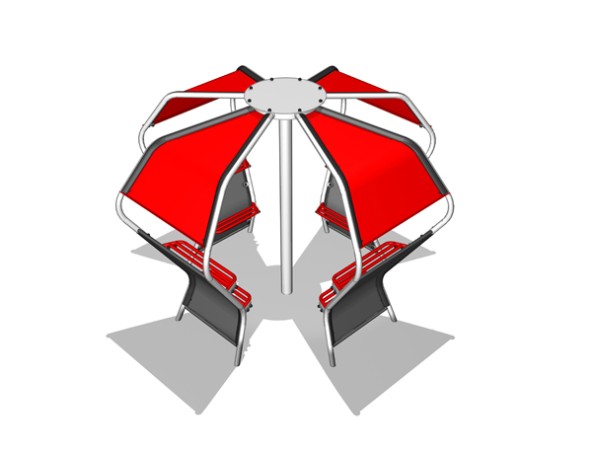

Split Pod Shelter



YOU045 Split Pod Shelter

A modular, all steel construction makes this Youth Shelter highly resilient and easy to clean. With an overhanging roof, sealed with specially designed waterproof rubber strips it keeps all users dry and provides great wind protection. Designed and developed through a series of consultations with a local authority and two secondary schools. It is available in two colour schemes, Red/Grey and Blue/grey.



Unit includes
QTY


Complete
- No Additional Activities Listed



Safety Surfacing


No safety surfacing required

Recommended Area
46 m²
Perimeter
24.7 m


Side Elevation


Total Height
2.54 m
Seat Height
1 m
Lower Level Seating Height
0.53 m

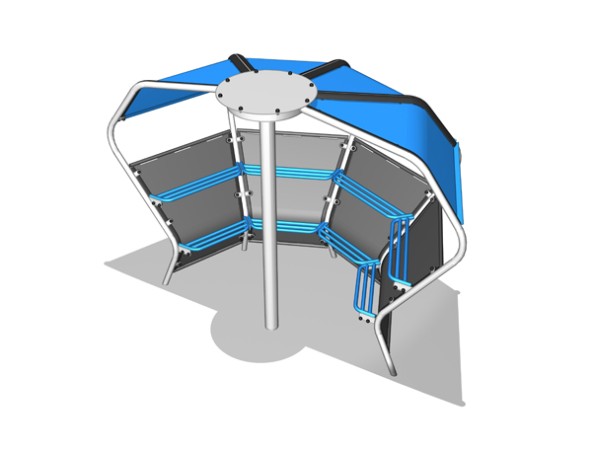

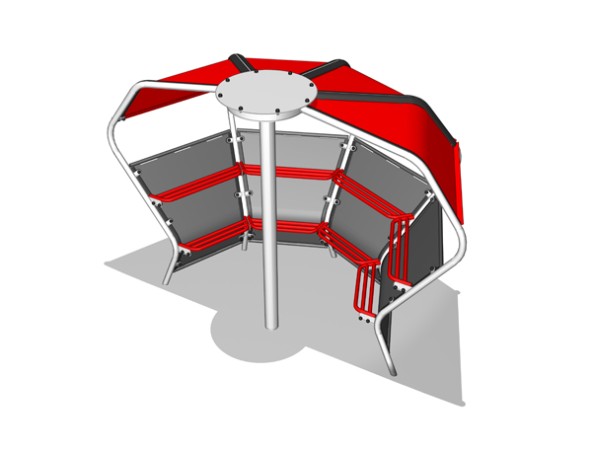

Half Pod Shelter



YOU040 Half Pod Shelter

A modular, all steel construction makes this Youth Shelter highly resilient and easy to clean. With an overhanging roof, sealed with specially designed waterproof rubber strips it keeps all users dry and provides great wind protection. Designed and developed through a series of consultations with a local authority and two secondary schools. It is available in two colour schemes, Red/Grey and Blue/grey.



Unit includes
QTY


Complete
- No Additional Activities Listed



Safety Surfacing


No safety surfacing required

Recommended Area
40 m²
Perimeter
23.6 m


Side Elevation


Total Height
2.54 m
Seat Height
1 m
Lower Level Seating Height
0.53 m

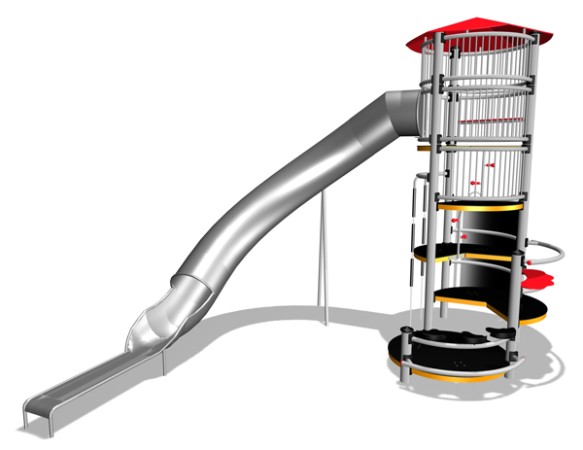

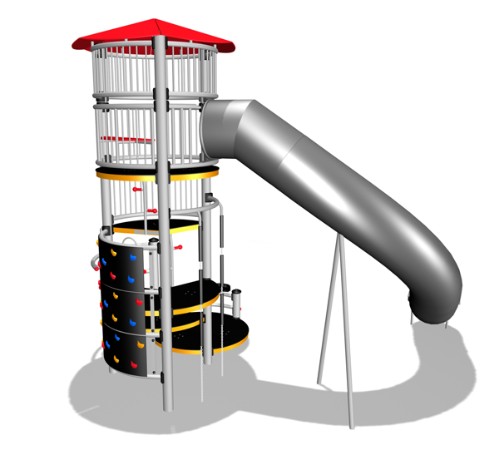

Meet and Slide

TZU205

This unit, with a high 6 m tower, a covered tunnel chute, climbing wall, flexi rope climb and staggered seating areas in and around the tower, combines both active and social elements. The large 600 mm step heights that need a long reach, restrict access for young children. The 3.3 m high deck gives a feeling of being really high up, but the entire unit is totally enclosed above 1.5 m to ensure safety. A high capacity unit with plenty of seating on the bottom terrace



Unit includes
QTY


TZA015
Chute Entrance Barrier
1
TZA080
Standard Barrier
3
TZA260
Internal Curved Seat
1
TZA035
Internal Ladder
2
SCP340
3.3m Curved Tunnel Chute
1
TZA040
Internal Handrail
1
TZA140
Curved Climbing Wall
1
TZA010
Six Panel Roof
1
TZD100
Deck
10
TZA018
Guard Rail
2
TZA001
Rotating Saddle Seats
1
TZA013
Roof Support Barrier
3
TZA145
Flexi Climb
1
PZ Posts
Playzone Posts
21.63 m


Safety Surfacing


Tower Perimeter
23.5 m
Runout Perimeter
13 m
Runout HIC
0.6 m - 12 m²
Tower Area
42 m²
Runout Area
12 m²
Tower HIC
1.5 - 29 m²


Side Elevation


Total Height
5.6 m
Deck Height
3.3 m
Deck Height
2.4 m
Deck Height
1.5 m
Deck Height
0.9 m
Deck Height
0.3 m

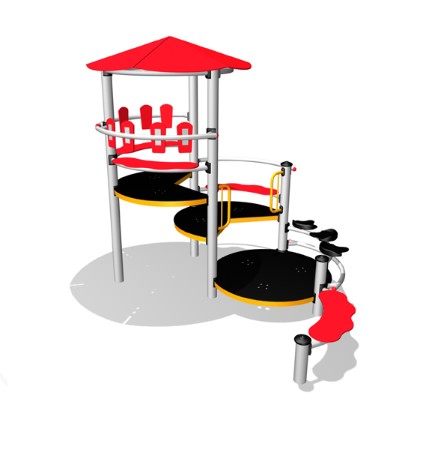

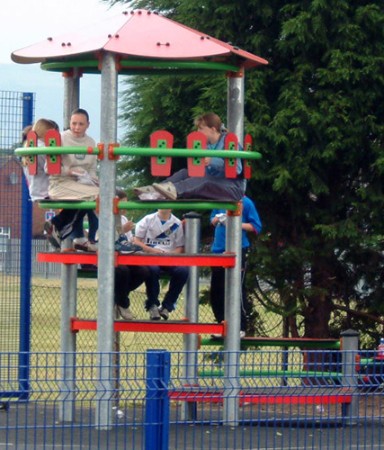

Tiered Seating



TZU183

Tiered Seating. This large capacity meeting place caters for up to 20 teenagers, at multiple levels, perfect for several groups of friends. Overhanging eaves on the tower provide protection from the rain. The ergonomically designed saddle seats, made from tough urethane, swivel for added fun.



Unit includes
QTY


TZ Posts
Teenzone Posts
17.7
TZA018
Guard Rail
2
TZD100
Deck
7
TZA010
Six Panel Roof
1
TZA025
Curved Seat
4
TZA001
Rotating Saddle Seats
1
TZA150
D Rail (each)
2
TZA045
Backrest
2


Safety Surfacing


Area
24 m²
Perimeter
18 m
HIC 0.5 m
18 m²


Side Elevation


Total Height
3.8 m
Deck Height
0.3 m
Deck Height
0.9 m
Deck Height
1.5 m

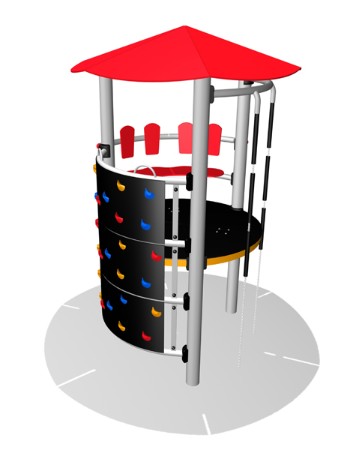

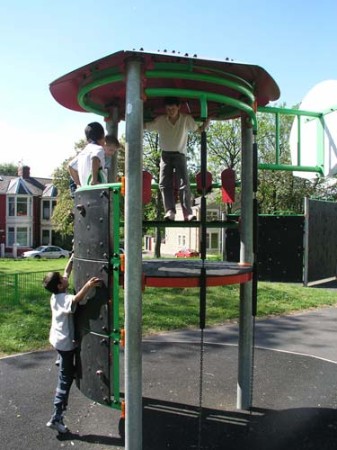

Curved Climber



TZU126

Curved Climber. This is a meeting place with a twist. Access is only possible via either the curved climbing wall or up a very challenging flexi-chain climb. The roof and climbing wall also provide shelter from the weather.



Unit includes
QTY


TZA025
Curved Seat
1
TZ Posts
Teenzone Posts
12
TZA145
Flexi Climb
1
TZA140
Curved Climbing Wall
1
TZA045
Backrest
1
TZA010
Six Panel Roof
1
TZD100
Deck
3
TZA016
Roof Support Tube
3


Safety Surfacing


Area
24 m²
HIC 2.1 m
24 m²
Perimeter
18 m


Side Elevation


Total Height
3.8 m
Deck Height
1.5 m

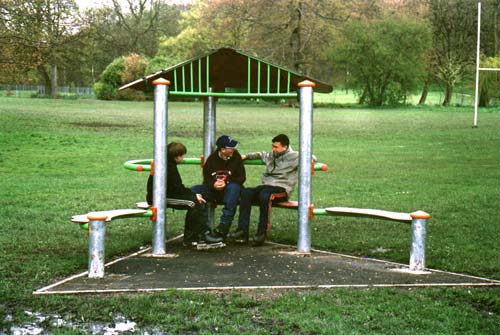

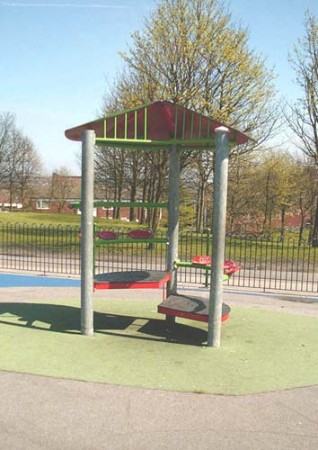

Teen Shelter



TZU052

A simple sheltered social meeting place to hang out with friends. Comprised of four bench seats (two under cover, two out in the open) and a four panel roof.



Unit includes
QTY


TZA025
Curved Seat
4
TZ Posts
Teenzone Posts
10.1
TZA014
Four Panel Roof
1
TZA018
Guard Rail
2


Safety Surfacing


No safety surfacing required
-


Side Elevation


Total Height
2.9 m
Seat Height
0.4 m
