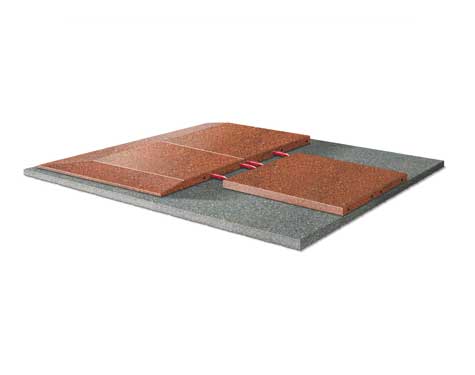

Safety surface, safety slab
This safety flooring system which fulfils the standards applicable for flooring under playground equipment convinces by its wide range of applications, simple installation as well as the fallvalues for heights ranging from 1.00 - 2.40 m.
- reduce the risk of injuries with breakages
- ideal for barrier-free installation
- offers a wide range of product varients for individual design option
- easy to clean
- slip proof
- water permeable
- can be installed on different types of subsoils
- can be supplemented by the products described

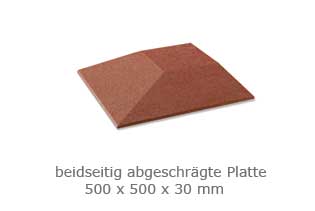

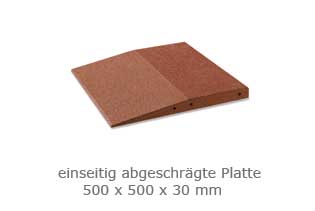

bevelled on one side

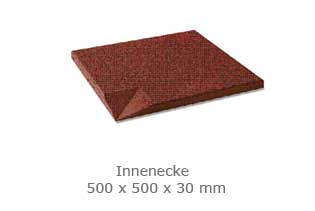

bevelled inside

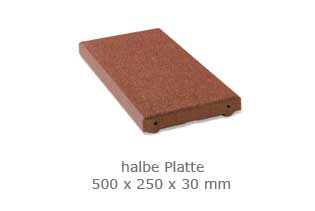

half slab

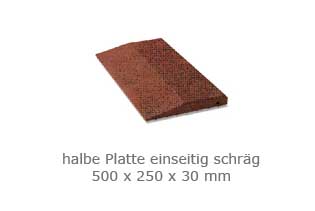

half slab bevelled

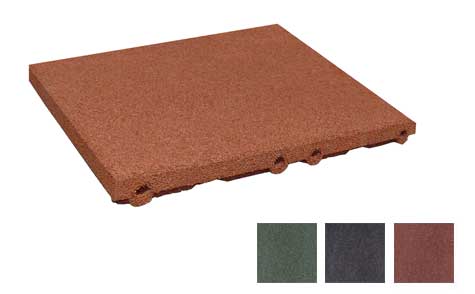

Safety slab 500 x 500 x 30 mm
Fall height 1.00 m, EN 1177, HIC 1000
Water permeable
Product-No.: 15 1030 101
| Size (LxWxH): | 500 x 500 x 30 mm |
| Deainage: | |
| Recommended subsoil: | hard ground |
| Weight: | 20,80 kg / sqm |
| Delivery contents: | incl. connector |
Colours: redbrown, green, anthracite, grey, metallic, silvergrey, blue
Safety slab 40 mm
Fall height 1.30 m, according to EN 1177, HIC 1000
incl. drainage and connector
water permeable
Product-No.: 15 1040 101
| Size (LxWxH): | 500 x 500 x 40 mm |
| Drainage: | |
| Recommended subsoil: | all subsoil |
| Weight: | 28,80 kg / sqm |
| Delivery contents: | incl. connector |
Colours: redbrown, green, anthracite, grey, metallic, silvergrey, blue

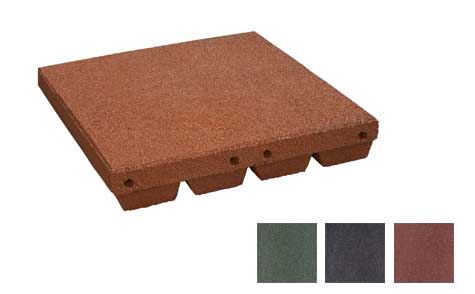

Safety slab 45 mm
Fall height 1,50 m, according to EN 1177, HIC 1000
incl. drainage and connector
water permeable
Product-No.: 15 1045 101
| Size (LxWxH): | 500 x 500 x 45 mm |
| Drainage: | |
| Recommended subsoil: | all subsoil |
| Weight: | 28,00 kg / sqm |
| Delivery contents: | incl. connector |
Clours: redbrown, green, anthracite, grey, metallic, sivergrey, blue
Safety slab 65 mm
Fall height 2,00 m, according to EN 1177, HIC 1000
with drainage and connector
water permeable
Product-No.: 15 1065 101
| Size (LxWxH): | 500 x 500 x 65 mm |
| Dainage: | |
| Recomended subsoil: | all subsoil |
| Weight: | 34,80 kg / sqm |
| Delivery contents: | incl. connector |
Clours: redbrown, green, anthracite
Safety slab 80 mm
Fall height 2,40 m, according to EN 1177, HIC 1000
with drainage and connector
water permeable
Product-No.: 15 1080 101
| Size (LxWxH): | 500 x 500 x 80 mm |
| Drainage: | |
| Recomended subsoil: | all subsoil |
| Weight: | 46,00 kg / sqm |
| Delivery contents: | incl. connector |
Colours: redbrown, green, anthracite

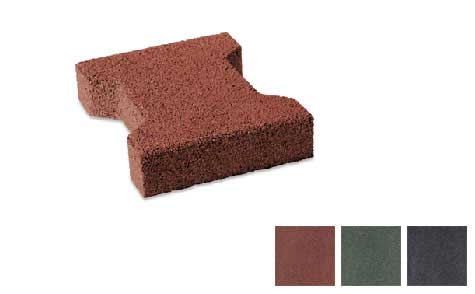

Double-T
The interlocking double-T bricks are easy to install and to fix on the subsoil. A consistently homogenous surface image is guaranted.
- for path surfaces in animal-keeping and sport facility construction
- ideal for renovation of cobblestone or asphalt areas
- for a durable stabilisation of areas
without drainage and connector
water permeable
Product-No.: 20 1543 101
| Size (LxWxH): | 200 x 160 x 43 mm |
| Drainage: | |
| Recomended subsoil: | all subsoil |
| Weight: | 37,80 kg / sqm |
| Delivery contents: | |

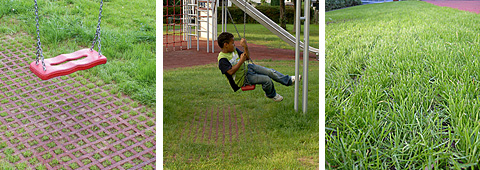

Lawn-grating system
Fall height 1.50 m
The outstanding featureof the Lawn-grating slabs is the combination of highest-possible impact-absorption characteristics with natural optics. The lawn-gratings slabs perfectly match the existing lawn optics and guarantee a long-lasting solid underground, e.g. for the sensitive area under swings.
- playground equipment can be used irrespective of season and weather
- no time-consuming underground and bordering works required
- minimum of 70% lawn share
- natural optics
- ideal impact-absorption for slope slides
- prevents molehills
water permeable
Product-No.: 15 2865 101
| Size (LxWxH): | 1000 x 1000 x 65 mm |
| Drainage: | |
| Recomended subsoil: | seep down subsoil |
| Weight: | 26 kg / sqm |
| Delivery contents: |
Colours: redbrown, green, anthracite

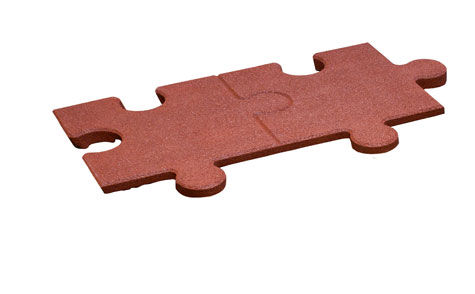

Safety puzzle slab
With the new Safety Puzzle Slab, installation is extremly fast and simple. The perfect interlocking large-format elements offer an attractive and long-lasting surface image.
- variety of color alternatives for designing creativ play areas
- impact-absorption characteristics upon request
- waffle-shaped drainage system on the lower side of the slab
- suitable as base layer for wet-pour surfaces
- simple, fast and inexpensive installation
The Puzzle range has been supplemented by four new bordering elements which can be integrated into any surface installation plan to create a perfect form finish.
Product-No.: 15 1145 101
| Size (LxWxH): | 1000 x 500 x 45 mm |
| Drainage: | |
| Recomended subsoil: | owners manual |
| Weight: | kg / pcs |
| Fall height: | on request |
Colours: redbrown, green, anthracite, grey, metallic, silvergrey, blue, EPDM surface

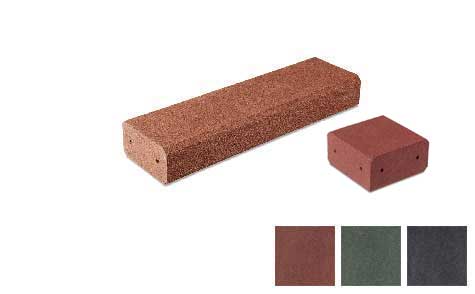

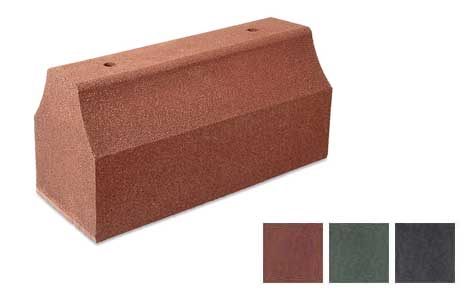

Block steps
Block steps may be used not only as framing elements but also for staircases. With their non-slip surface, they are very attractive design elements particulary suitable for old people's homes, hospitals or facilities for handicapped people. They are alsoa very attractive design elements for sandpits.
- applicable on any type of subsoil
- gluing on solid subsoils recommended
- half-sized block step and block step corner for designing complete staircases aviable
water permeable
Product-No.: 25 1500 101
| Size (LxWxH): | 1000 x 300 x 150 mm |
| Drainage: | |
| Recommended subsoil: | hard subsoil |
| Weight: | 33,00 kg / Pcs |
| Delivery contents: | incl. connector |

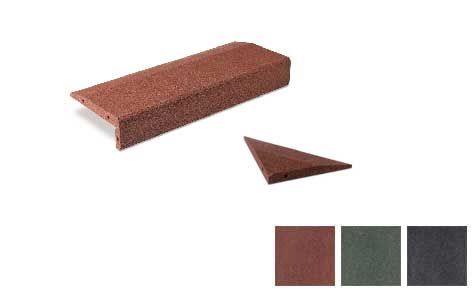

Sandpit corner cover
The sandpit corner covers are used as supplementary covers for already existing sandpits, wall projections or any other type of borderings. Sandpits with corners can be upgraded , without time-consuming mitre cuts, by means of the sandpit corner elements.
- to be glued onto solid subsoils
- isolating effect
- ideal for designing safe and high-quality play areas
- water permeable
Colours: redbrown, green, anthracite
Product-No.: 25 5500 101
| Size (LxWxH): | 1000 x 400 x 140 mm |
| Drainage: | |
| Recommended subsoil: | |
| Weight: | 16,00 kg / pcs |
| Delivery contents: | incl. connector |
| |

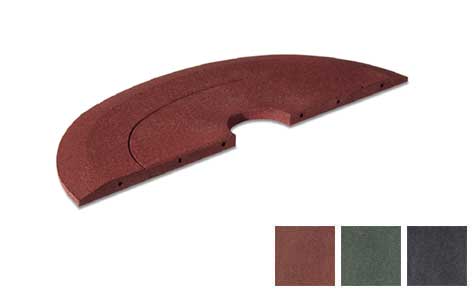

Spring mate tiles
Spring mate tiles improve the impact-absorbing characteristics under small-sized play equipment and spring elements. Furthermore , they add to the cleanliness in the area of the ground fastening.
- minimisation of injury risks
- trouble-free installation and/or retrofitting
- two framing halves are combined and fastened by system plugs
- water premeable
Colours: redbrown, green, anthracite
Product-No.: 25 3045 101
| Size (LxWxH): | 1500 x 600 x 60 mm |
| Drainage: | |
| Recommended subsoil: | all subsoil |
| Weight: | 44,00 kg / pcs |
| Delivery contents: | incl. connector |
Chain element 1000
This elegantly shaped design element offers a wide scope for design variation thanks to its dimension and numerious fields of application. It can be installed on solid and on water-permeable subsoils.
- sandpit bordering
- play area framing
- traffic-guidance system
- low dead weigth
- water permeable
Colours: redbrown, green, anthacite
Product-No.: 25 4600 101
| Size (LxWxH): | 1150 x 150 x 400 mm |
| Drainage: | |
| Recommended subsoil: | optional |
| Weight: | 36,50 kg / pcs |
| Delivery contents: | optional earth anchor |
Hockey board
The Hockey boards are used as framing elements for street hockey fields and skating parks. Due to the fact that these play areas can be flooded with temperatures under -10 C the hockey boards are also suited for ice hockey fields or ice-skating rinks.
- variable size of play courts
- fast-drying, variable seating surface
- to be optionally fitted with ad signs
- to be installed only on solid subsoils
- for radius and corner elements as well as fixing material
- water permeable
Product-No.: 25 5000 101
| Size (LxWxH): | 1000 x 450/200 x 400 mm |
| Drainage: | |
| recommended subsoil: | hard subsoil |
| Weight: | 85,00 kg / pcs |
| Delivery contents: | incl. connector |

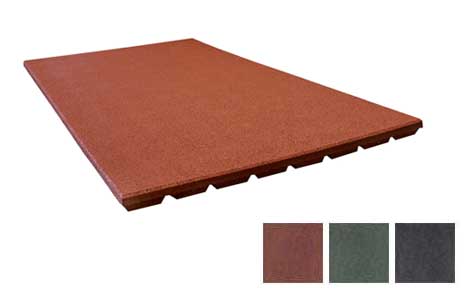

Slide ramp
The highly stressed area at the end of slides is the place of application for the new Slide ramp. Their large format puts an end to the shifting of individual slabs.
- no abrasion of the upper soil layer at the end of the slide
- can be combined with the safety slabs
- extremely wear-resistant
- permanent foundation cover
- stable positioning due to high dead load
- water permeable
Colours: redbrown, green, anthr
Product-No.: 10 3845 101
| Size (LxWxH): | 1000 x 1500 x 45 mm |

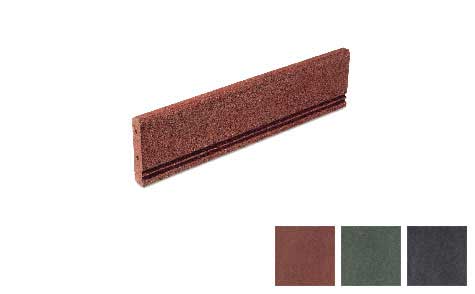

Path bordering
The Path borderings offer flexible bordering systems for playing fields and running tracks in sport and leisure facilities. In addition, our terrace and cobblestone paving systems are framed by the path bordering elements.
- also avaible with ground anchors
- optionally available with reinforcing steel for designing radiuses
Product-No.: 25 2000 101
| Size (LxWxH): | 1000 x 250 x 50 mm |
| | |
| | |
| Weight: | 9,20 kg / pcs |
| |

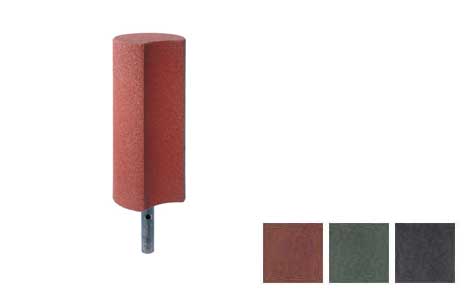

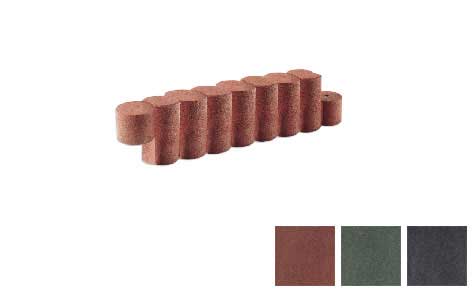

Palisade
Slope stabilisation and border framing for play andsport areas fall into the range of application of the Palisades which stand out by their elegant design, the flexible design option they offer and their unproblematic installation. In addition, the Palisades reduce the risks of injuries and at the same time they can be used as a pleasant seating surface.
- integrated ground anchor for perfect stability
- five palisades required per metre
- four different heights avaible for all ranges of application
- extensive range of products
- attractive slope stabilisation or framing element
Product-No.: 25 4010 101
| Size (LxWxH): | Ø 250 x 400/600/800/1000 mm |
| | |
| | |
| Weight: | 36,00 kg / pcs |
| Delivery contents: | incl. connector |
