Unique Youthzone Ball Courts System (MUGA Pitches)

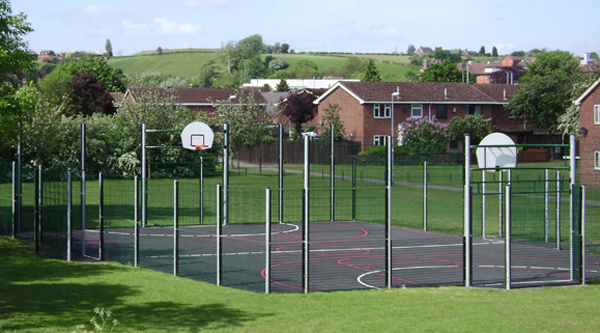

Our new unique ball courts system offers endless flexibility allowing many sports (tennis, basketball, football, volleyball etc) to be played in one area – ultimate multi use games area (MUGA). Choose from a full ball court or a standalone goal end.



  • Reduce noise complaints : unique sound insulation system
  • Tailor to your space and budget : a completely modular system that allows you to specify length, width, height & colour
  • Cope with sloping sites : height adjustable panels
  • Durable : twin 8mm wire mesh, pre-galvanised and powder coated
  • Consistent rebound quality



Our new unique ball court system offers endless flexibility allowing many sports (tennis, basketball, football, volleyball etc.) to be played in one area – ultimate multi-use games area (MUGA). Choose from a full ball court or a stand alone goal end. Others benefits include: • Reduction of noise complaints – unique sound insulation system • Tailoring to your space and budget – a completely modular system that allows you to specify length, width, height and colour • Ability to cope with sloping sites – height adjustable panels • Durability – twin 8mm, wire mesh, pre-galvanised and powder coated • Consistent rebound quality







Youthzone Ball Courts and Goal Ends:

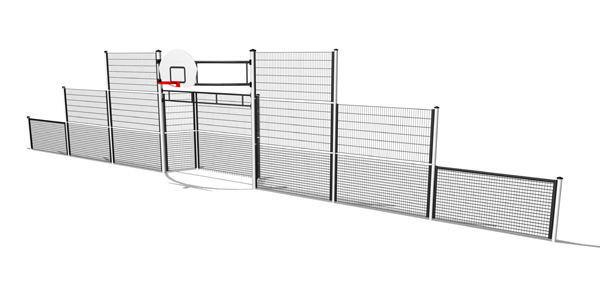

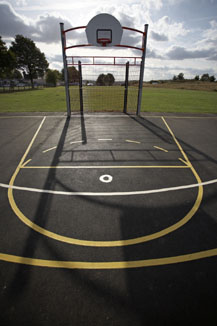

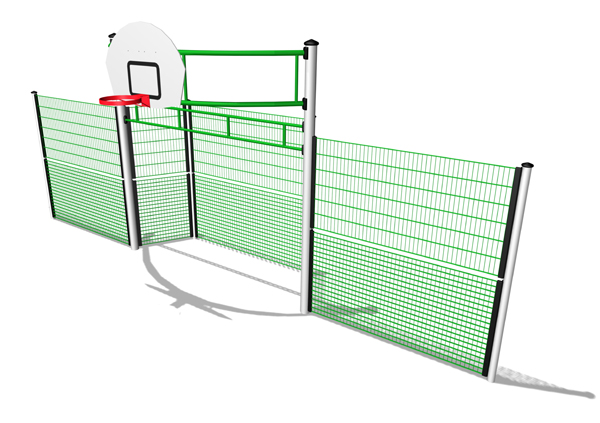

Large Goal End



SZU 060 Large Goal End



Unit includes
QTY


SZA030
Upper Panel
6
SZA020
Lower Panel
4
SZU040
Closed Goal
1
SZA022
Lower Panel with Hand Rail
2


Safety Surfacing


No safety surfacing required



Side Elevation


Total Height
3.2 m
Goal Height
2.4 m

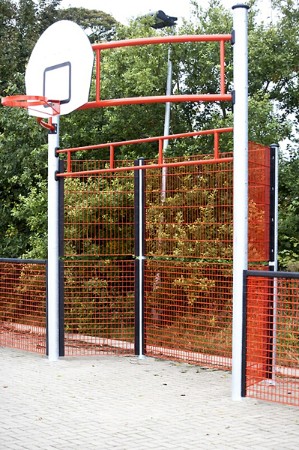

Short Goal End



SZU050 Short Goal End



Unit includes
QTY


SZU040
Closed Goal
1
SZA020
Lower Panel
2
SZA030
Upper Panel
2
SZP002
Medium Post
2


Safety Surfacing


No safety surfacing required



Side Elevation


Total Height
3.2 m

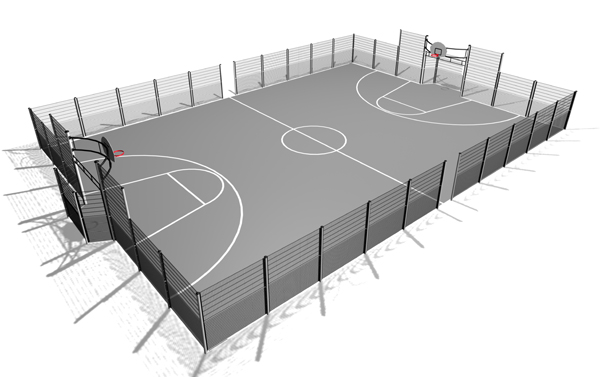

Standard Ball Court



SZU030 Ball Court 18.6 m x 25 m



Unit includes
QTY


SZP002
Medium Post
28
SZP003
High Post
4
SZA020
Lower Panel
32
SZA030
Upper Panel
36
SZU040
Closed Goal
2


Safety Surfacing


No safety surfacing required



Side Elevation


Side Barrier Height
2.6 m
Goal Height
2.6 m
Total Height
3.9 m







Standard Ball Court



SZU020 Ball Court 18.6 m x 25 m



Unit includes
QTY


SZA030
Upper Panel
12
SZA020
Lower Panel
8
SZA022
Lower Panel with Hand Rail
24
SZP001
Short Post
24
SZP002
Medium Post
4
SZP003
High Post
4
SZU040
Closed Goal
2


Safety Surfacing


No safety surfacing required



Side Elevation


Total Height
3.9 m
Goal Height
2.6 m
Side Barrier Height
1.3 m







Standard Ball Court



SZU010 Ball Court 13.6 m x 21 m



Unit includes
QTY


SZU040
Closed Goal
2
SZP001
Short Post
20
SZP002
Medium Post
4
SZA030
Upper Panel
4
SZA020
Lower Panel
4
SZA022
Lower Panel with Hand Rail
20


Safety Surfacing


No safety surfacing required



Side Elevation


Goal Height
2.6 m
Side Barrier Height
1.3 m
Total Height
3.9 m

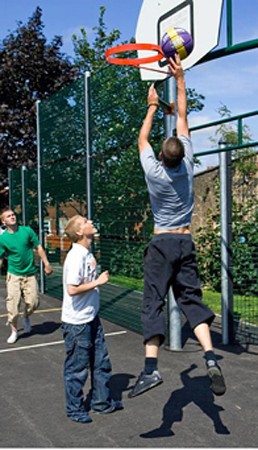

Basketball Goal

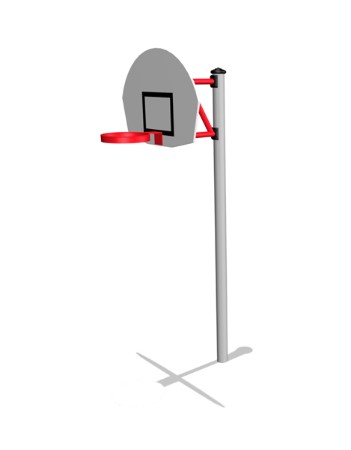

TZU107 Basketball Goal

A single Basketball Goal 3m high with a high pressure laminated backboard.



Unit includes
QTY


TZA065
Basketball Goal Single Post Fixing
1


Safety Surfacing


No safety surfacing required
-


Side Elevation


Total Height
3.8 m
Goal Height
3 m





Youthzone Special Units



Ball Court Special Units Range

As well as a range of standard Ball courts, we often get asked to design special games areas to specific customer requirements. These special games areas are still fully in compliance with relevant safety standards, but are configured and finished in a unique way.

Listed below are just a few ways in which our design team can customise your ball court:

  1. Different colour and finish options
  2. Increase or decrease the scale/footprint of the unit to suit any location
  3. Add, remove or change panels to suit your needs and cater for any sporting activity
  4. Modify a unit to suit contouring landscapes

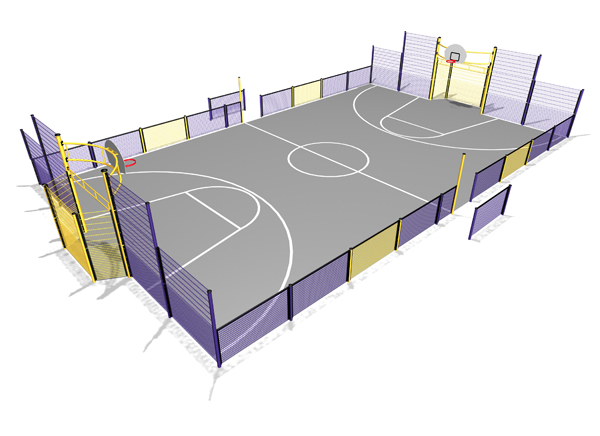

Ball Court



SZU112 15 m x 11 m Ball Court

This ball court illustrates the flexibility of Sutcliffe Play's NEW Youthzone ball courts system. Different colours have been used to differentiate between the side barriers and goals. This court can be split across the middle, creating two games areas. This ball court accommodates most sporting activities including: football, hockey, basketball, tennis, badminton and volleyball. Cricket stumps can be added on request.



Unit includes
QTY


SZA070
Small Upper Panel
4
SZU040
Closed Goal
2
SZA022
Lower Panel with Hand Rail
12
SZA060
Small Lower Panel with Hand Rail
1
SZA050
Small Lower Panel
4
SZP003
High Post
4
SZA030
Upper Panel
8
SZA020
Lower Panel
4
SZP001
Short Post
13
SZP002
Medium Post
4


Safety Surfacing


No safety surfacing required



Side Elevation


Total Height
3.9 m
Side Barrier Height
1.3 m
Goal Height
2.6 m

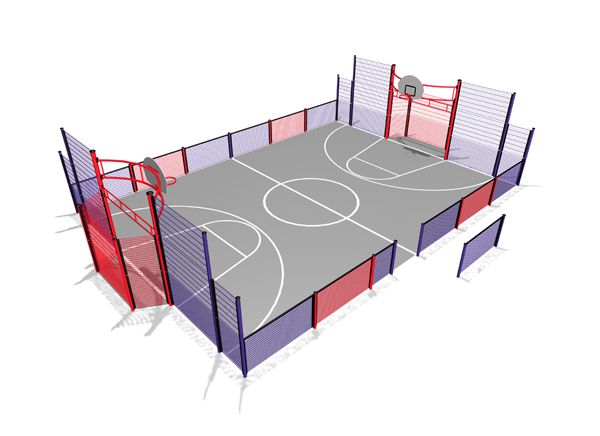

Ball Court

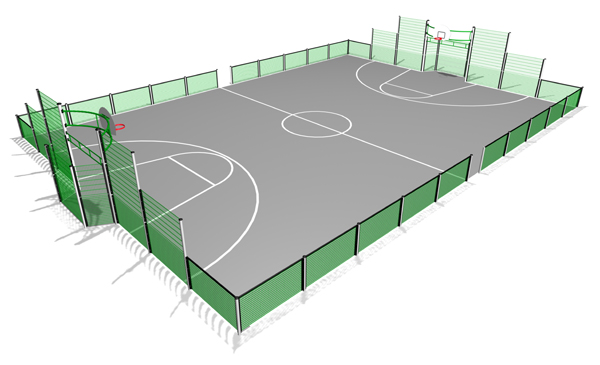

SZU116 22.5 m x 13.6 m Ball Court

This ball court illustrates the flexibility of Sutcliffe Play's NEW Youthzone ball courts system. Different colours have been used to differentiate between the side barriers and goals. This court can be split across the middle, creating two games areas. This ball court accommodates most sporting activities including: football, hockey, basketball, tennis, badminton and volleyball. Cricket stumps can be added on request.



Unit includes
QTY


SZA020
Lower Panel
8
SZU040
Closed Goal
2
SZP001
Short Post
20
SZP002
Medium Post
6
SZA022
Lower Panel with Hand Rail
18
SZA030
Upper Panel
12
SZA060
Small Lower Panel with Hand Rail
2
SZP003
High Post
4


Safety Surfacing


No safety surfacing required



Side Elevation


Total Height
3.9 m
Side Barrier Height
1.3 m
Goal Height
2.6 m







Ball Court

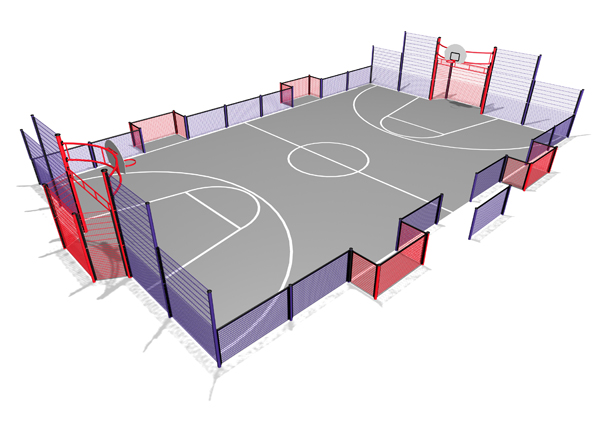

SZU113 22.5 m x 13.6 m Ball Court

This ball court illustrates the flexibility of Sutcliffe Play's NEW Youthzone ball courts system. Different colours have been used to differentiate between the side barriers and goals. This court can be split across the middle, creating two games areas. New goals have been created down the side walls specifically for dual use. This ball court accommodates most sporting activities including: football, hockey, basketball, tennis, badminton and volleyball. Cricket stumps can be added on request.



Unit includes
QTY


SZU040
Closed Goal
2
SZP003
High Post
4
SZA030
Upper Panel
12
SZA022
Lower Panel with Hand Rail
18
SZP001
Short Post
26
SZA060
Small Lower Panel with Hand Rail
8
SZP002
Medium Post
4
SZA020
Lower Panel
8


Safety Surfacing


No safety surfacing required



Side Elevation


Total Height
3.9 m
Side Barrier Height
1.3 m
Goal Height
2.6 m
