Junior: Playzone Std Units

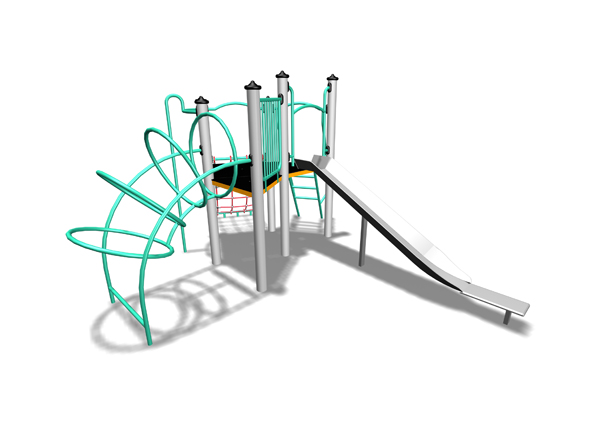

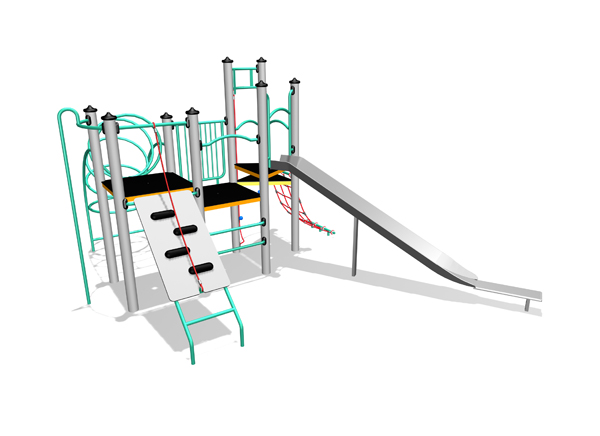

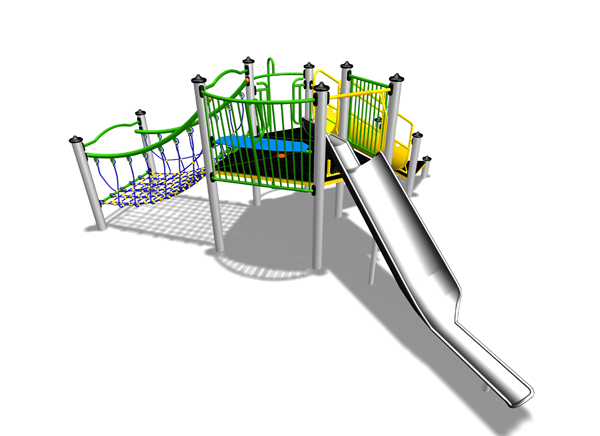

 Fireman's Tower

 PZU683 bark, sand fill / PZW683 Rubber surfacing



Unit includes
QTY


PZ Posts
Playzone Posts
38.45m
PZT555
1.5m Slide Bars
1
PZT226
Arch Top Rail
3
PZA400
1.5m Scramble Net
1
PZS240
1.5m Traditional Slide
1
PZT650
1.5m Hoop Climber
1
PZA140
1.5m Fireman's Pole
1
PZA080
High Steel Barrier
2
PZA190
2m Rope Bridge
1
PZA440
1.5m Rope Climb
1
DZD200
1m Triangular Deck
1
DZD100
1m Square Deck
3
PZA050
Arch Entrance
1
PZA520
1.5m Pole Climb
1


Safety Surfacing


Area
62.5 m²
Perimeter
35 m
HIC 1.5 m
62.5 m²


Side Elevation


Total Height
3.45 m
Deck Height
1.5 m

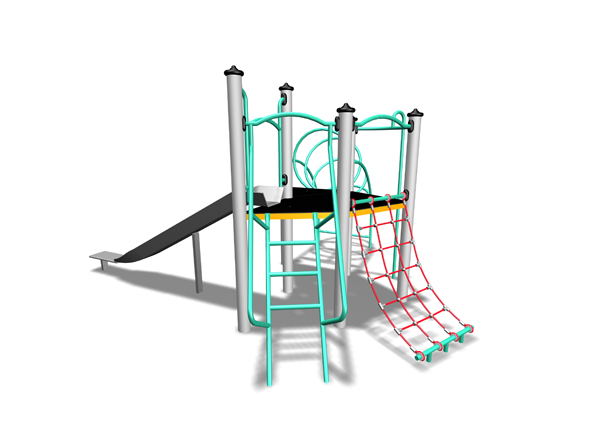

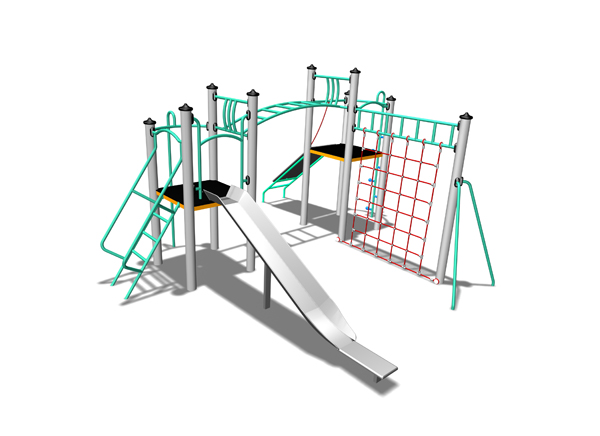

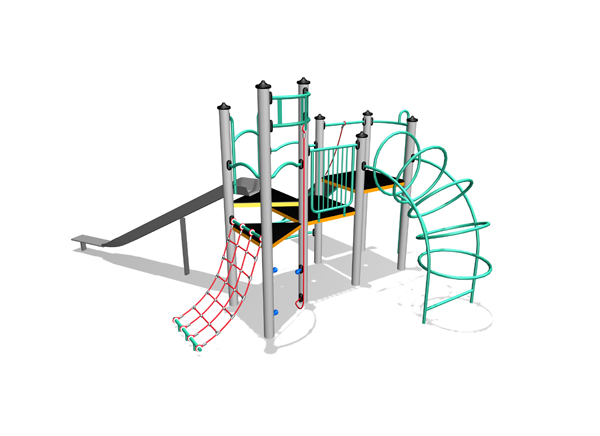

Two in One

PZU229 bark, sand fill / PZW229 Rubber surfacing

Two in One. This is our best-selling standard unit, because it is in effect, two units in one. It spans a wide age range from 4-10, with a younger section comprising ladder and slide or fireman's pole, and a more challenging area for older ones, featuring a pull-up ramp, a vertical net and a pole climb. A hand-over-hand acts as a child filter between the two araes. Being square, it's compact shape means more play value, and less surfacing.



Unit includes
QTY


PZT709
Bracing Leg (each)
2
PZS220
1.2m Traditional Slide
1
PZ Posts
Playzone Posts
30.15m
PZA050
Arch Entrance
1
PZA232
2m Inclined Hand Over Hand
1
PZA130
1.2m Fireman's Pole
1
PZA520
1.5m Pole Climb
1
PZT226
Arch Top Rail
1
PZT705
2.4m high Vertical Climbing Net
1
PZA610
1.5m Pull Up Ramp
1
DZD100
1m Square Deck
2
PZA260
1.2m Steel Ladder
1


Safety Surfacing


Area
57 m²
Perimeter
29 m
HIC 2.4 m
38 m²
HIC 1.5 m
19 m²


Side Elevation


Total Height
3 m
Deck Height
1.2 m
Deck Height
1.5 m

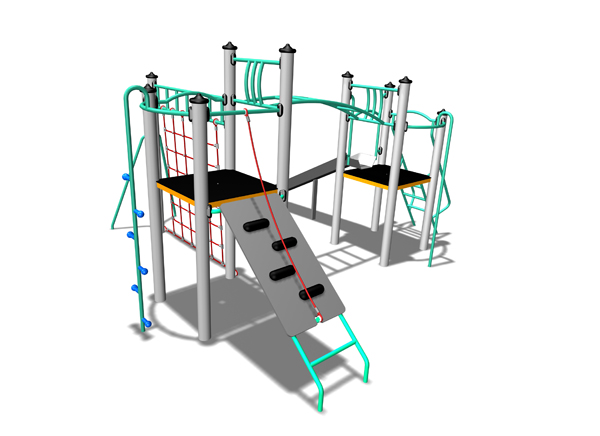

Assault Course



PZU345 bark, sand fill / PZW345 Rubber surfacing

Assault Course. A real agility developer! This Playzone has high decks with very challenging accesses: a pull up ramp, a 1.5m rope climb, a hoop climber, a 2.4m climbing wall and a 2.4m vertical climbing net. An unusual inclined flexi hand-over-hand also develops upper body strength. These challenges make this unitsuitable for children up to 14 years.



Unit includes
QTY


PZT650
1.5m Hoop Climber
1
PZT226
Arch Top Rail
3
PZA220
Hand/Foothold
2
PZT060
Inclined Flexi Hand Over Hand
1
PZ Posts
Playzone Posts
35.5m
PZT080
2.4m high Climbing Wall
1
PZS240
1.5m Traditional Slide
1
PZA050
Arch Entrance
1
PZA440
1.5m Rope Climb
1
PZT709
Bracing Leg (each)
2
PZT705
2.4m high Vertical Climbing Net
1
DZD200
1m Triangular Deck
1
DZD100
1m Square Deck
1
PZA610
1.5m Pull Up Ramp
1


Safety Surfacing


Area
76 m²
Perimeter
36 m
HIC 2.4 m
51 m²
HIC 1.5 m
25 m²


Side Elevation


Total Height
3.5 m
Deck Height
1.5 m

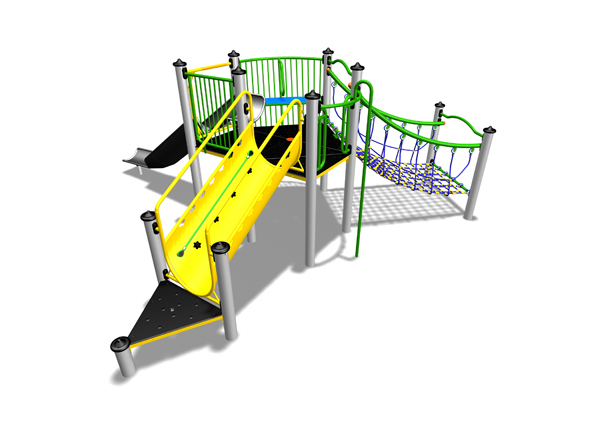

 2 Up, 2 Down



PZU523 bark, sand fill / PZW523 Rubber surfacing

Two accesses (drag ramp and inclusive net) and two exits (inclusive slide and fireman's pole), provide a mix of challenges and experiences. The large deck with social seating makes it ideal to rest awhile. The double width inclusive net is large enough for 2 children and doubles up as a hammock.



Unit includes
QTY


PZB100
1.4m Square Deck
1
DZD200
1m Triangular Deck
1
PZ Posts
Playzone Posts
30.68m
PZB020
Arch Top Rail 1.4m wide
2
PZB110
45 degree Triangular Deck
2
PZB030
1.4m wide Seat
1
PZB035
1.4m wide Seat Rail
1
PZB070
Inclined Drag Ramp Climber 0.9m high
1
PZB090
Chute Entrance
1
PZB140
1.2m Inclusive Slide left handed
1
PZA080
High Steel Barrier
1
PZA130
1.2m Fireman's Pole
1
PZB010
1.2m high Inclined Net 1.4m wide
1


Safety Surfacing


Area
49.5 m²
Perimeter
30.5 m
HIC 1.2 m
49.5 m²


Side Elevation


Total Height
2.4 m
Deck Height
0.3 m
Deck Height
1.2 m

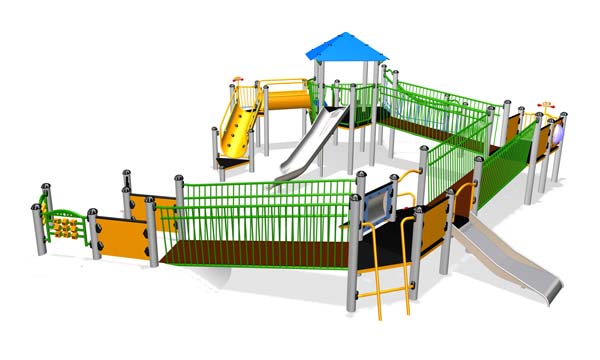

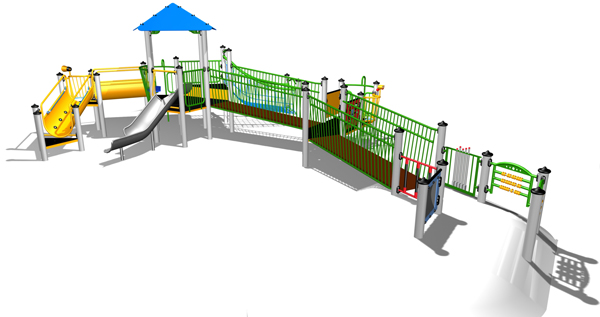

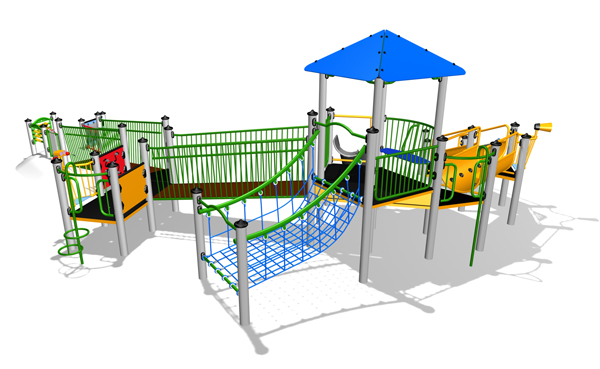

Play Trail



PZU551 bark, sand fill / PZW551 Rubber surfacing

This unit has play stations all along the trail and at every level - on the ground, at the top of the first ramp at 0.6m, at the top of the seond ramp at 0.9m and topped with a covered seating area and an inclusive slide at 1.2m. Designed for wheelchair access all way round, this unit has ample room for carers too. The slightly raised top of the inclusive slide allows for easy side transfer from wheelchairs.



Unit includes
QTY


PZ Posts
Playzone Posts
95.3m
PZB140
1.2m Inclusive Slide left handed
1
PZB020
Arch Top Rail 1.4m wide
2
PZB190
"3m Inclined Ramp
3
PZB100
1.4m Square Deck
1
PZB110
45 degree Triangular Deck
5
DZD200
1m Triangular Deck
4
DZD100
1m Square Deck
4
PZB030
1.4m wide Seat
1
PZB035
1.4m wide Seat Rail
1
PZB070
Inclined Drag Ramp Climber 0.9m high
1
PZB090
Chute Entrance
1
PZA080
High Steel Barrier
1
PZB025
1.4m Square Roof
1
PZB050
1.2m Stairs
1
DZA215
Oxo Rail
1
DZA015
Binocular Rail
2
DZA220
Bubble Window Panel
1
DZA090
Plain Panel
6
DZS100
0.6m Toddler Slide
1
DZA245
1.5m Straight Bridge
1
DZA105
0.6m Climb Up Ramp
1
PZT226
Arch Top Rail
1
DZA085
Mirror Panel
1
DZA115
0.6m Steel Ladder
1
DZA210
Abacus Rail
1
PZB010
1.2m high Inclined Net 1.4m wide
1
PZB065
Level Drag Ramp Climber
1


Safety Surfacing


Area
112 m²
Perimeter
43 m
HIC 0.6 m
22 m²
HIC 0.9 m
19 m²
HIC 1.2 m
71 m²


Side Elevation


Total Height
3.5 m
Deck Height
0.3 m
Deck Height
0.6 m
Deck Height
0.9 m
Deck Height
1.2 m

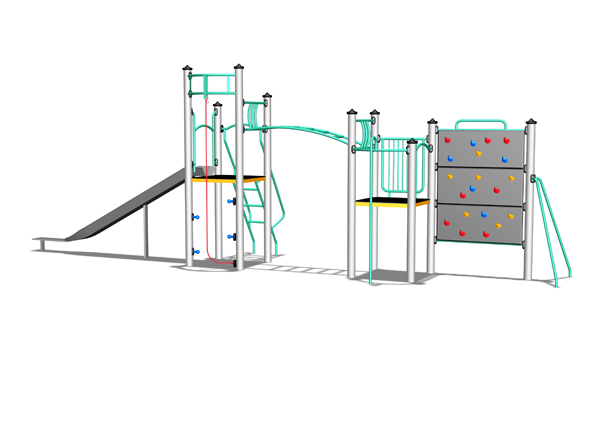

Long Climb



PZU617 bark, sand fill / PZW617 Rubber surfacing

Long Climb. A transitional unit that is good for older toddler and juniors alike. It has a challenging hand-over-hand section that acts as a filter between the the easy slide end and the trickier climbing wall and fireman's pole. I t provides increasingly difficult challenges to keep children coming back. Good for a long narrow space.



Unit includes
QTY


PZA130
1.2m Fireman's Pole
1
DZD100
1m Square Deck
2
PZA270
1.5m Steel Ladder
1
PZA440
1.5m Rope Climb
1
PZT226
Arch Top Rail
2
PZA080
High Steel Barrier
1
PZA050
Arch Entrance
1
PZT075
2.4m high Climbing Wall 1.6m wide
1
PZT709
Bracing Leg (each)
2
PZ Posts
Playzone Posts
31.8m
PZA232
2m Inclined Hand Over Hand
1
PZS240
1.5m Traditional Slide
1


Safety Surfacing


Area
57 m²
Perimeter
33.5 m
HIC 2.4 m
43.5 m²
HIC 1.5 m
13.5 m²


Side Elevation


Total Height
2.85 m
Deck Height
1.2 m
Deck Height
1.5 m

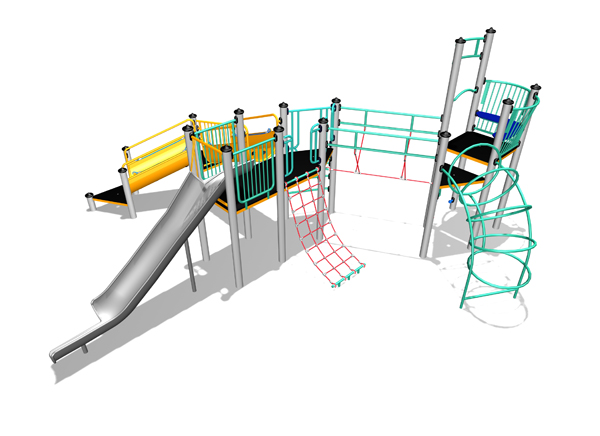

High Wire



PZU679 bark, sand fill / PZW679 Rubber surfacing

High Wire. Designed to be challenging at one end and more inclusive at the other, this unit has platforms at 4 different heights. At the the more accessible end, there is a scramble net or drag ramp to climb up, and a high sided inclusive slide to exit. The more challeneging end has a hoop climber, a 1.8m rope climb and hard access rungs. Between the two areas is a unique rope bridge, which gives the feeling of being on the high wire. This Playzone unit is a perfect example of how we develop equipment to enable children of all ages to play together.



Unit includes
QTY


PZA100
Curved Seat
2
PZA400
1.5m Scramble Net
1
DZD200
1m Triangular Deck
4
DZD100
1m Square Deck
3
PZA210
Single Rung
3
PZB075
Inclined Drag Ramp Climber 0.6m high
2
PZ Posts
Playzone Posts
55.35
PZT650
1.5m Hoop Climber
1
PZA060
Curved Rail
2
PZT226
Arch Top Rail
3
DZA300
Steel Barrier
1
PZA080
High Steel Barrier
2
PZA450
1.8m Rope Climb
1
PZB090
Chute Entrance
1
PZB150
1.5m Inclusive Slide left handed
1
PZA190
2m Rope Bridge
1


Safety Surfacing


Area
74 m²
Perimeter
38 m
HIC 1.8 m
20 m²
HIC 1.5 m
54 m²


Side Elevation


Total Height
3 m
Deck Height
0.3 m
Deck Height
0.9 m
Deck Height
1.5 m
Deck Height
1.8 m

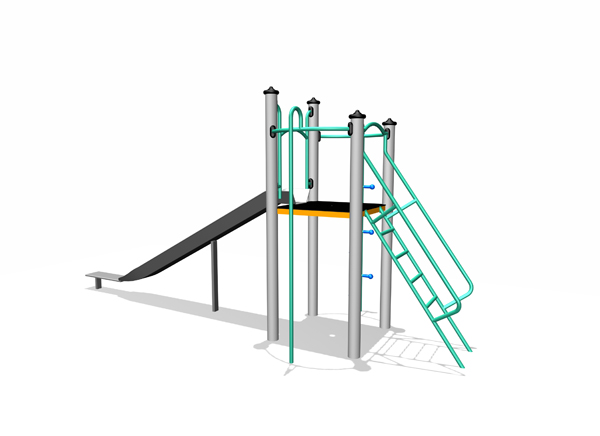

Climb Slide



PZU680 bark, sand fill / PZW680 Rubber surfacing

A simple small system that offers a bit more than just a slide, as it also has a pole climb and fireman's pole to get back down again. It encourages locomotor, rough and tumble and social play.



Unit includes
QTY


DZD100
1m Square Deck
1
PZA520
1.5m Pole Climb
1
PZA140
1.5m Fireman's Pole
1
PZA270
1.5m Steel Ladder
1
PZA050
Arch Entrance
1
PZS240
1.5m Traditional Slide
1
PZ Posts
Playzone Posts
13.6m


Safety Surfacing


Area
34.5 m²
Perimeter
24 m
HIC 1.5 m
34.5 m²


Side Elevation


Total Height
2.85 m
Deck Height
1.5 m

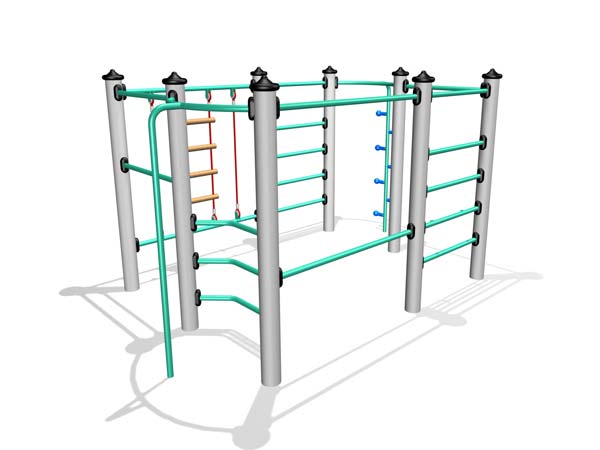

Schools Climber



PZU152 bark, sand fill / PZW152 Rubber surfacing

Schools Climber. An agility system designed for Primary (Key Stage One) schools but equally ideal for unsupervised play areas. Offering progressively challenging climbs (rungs, pole climb and ladder rope), this Playzone unit is suitable for a wide age range of 4-10 years.



Unit includes
QTY


PZA815
Angled 1.0m Rung
3
PZA214
1.5m Straight Rail
2
PZA900
Ladder/Rope Assembly
1
PZ Posts
Playzone Posts
21.2m
PZA212
1m Straight Rail
13
PZA125
Fireman's Pole
1
PZA490
Pole Climb
1


Safety Surfacing


Area
35.5 m²
Perimeter
22 m
HIC 1.9 m
35.5 m²


Side Elevation


Total Height
2 m







Pole Up Pole Down



PZU682 bark, sand fill / PZW682 Rubber surfacing

A compact playzone unit, designed to vbe a little easier, with decks at 1.2m as well as 1.5m high. The scarmble net and traditional slide provide an easier option for younger ones. The 1.5m tower with rope climb makes for great play.



Unit includes
QTY


PZS240
1.5m Traditional Slide
1
PZT226
Arch Top Rail
3
PZA080
High Steel Barrier
1
DZD100
1m Square Deck
2
PZA210
Single Rung
2
PZA610
1.5m Pull Up Ramp
1
PZA050
Arch Entrance
1
PZA140
1.5m Fireman's Pole
1
DZD200
1m Triangular Deck
2
PZ Posts
Playzone Posts
27.65m
PZA430
1.2m Rope Climb
1
PZA390
0.9m/1.2m Scramble Net
1
PZT650
1.5m Hoop Climber
1


Safety Surfacing


Area
51.5 m²
Perimeter
29.5 m
HIC 1.5 m
51.5 m²


Side Elevation


Total Height
3.15 m
Deck Height
1.2 m
Deck Height
1.5 m

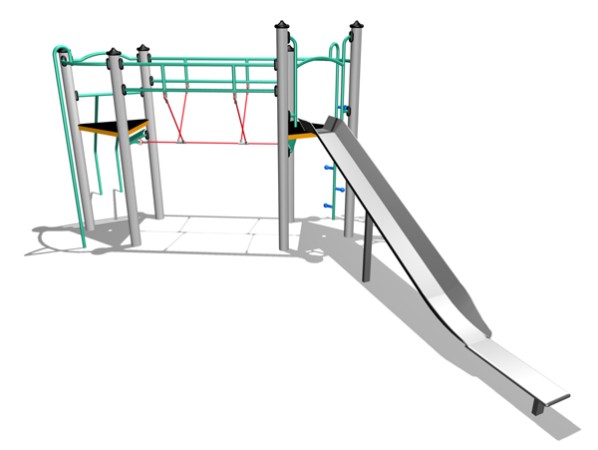

Challenge Climber



Playzone Unit



A simple Playzone with a range of more challenging activities. Entering up a pole climb there is achoice of high slide or a rope bridge traverse to a secong tower. A quick exit is achieved down slide bars or a firemans pole.



Unit includes
QTY


PZA050
Arch Entrance
1
PZA140
1.5m Fireman's Pole
1
PZA190
2m Rope Bridge
1
PZA520
1.5m Pole Climb
1
PZT226
Arch Top Rail
1
PZS240
1.5m Traditional Slide
1
PZ Posts
Playzone Posts
20.1m
PZT555
1.5m Slide Bars
1
DZD200
1m Triangular Deck
2


Safety Surfacing


Area
44.5 m²
HIC 1.5 m
44.5 m²
Perimeter
29 m


Side Elevation


Total Height
2.82 m
Deck Height
1.5 m

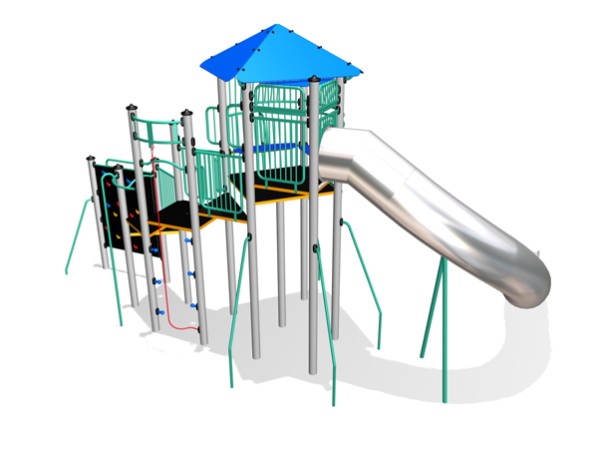

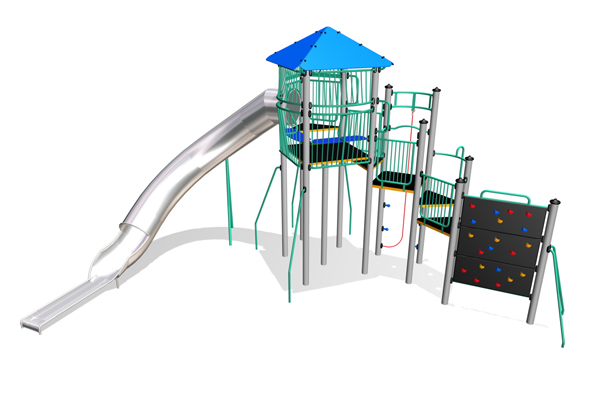

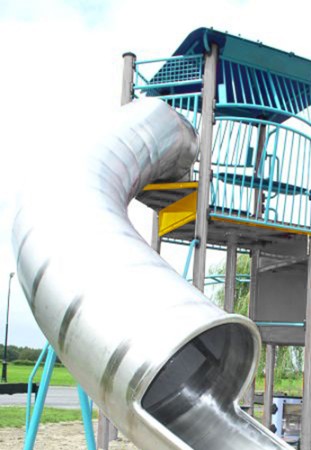

Tree House



PZU684 bark, sand fill / PZW684 Rubber surfacing

This tower gives a feeling of being up amongst the trees; its our highest Playzone unit and has an exciting 3 m high elbow chute. Access is by way of climbing wall, large step-ups or a 2.1 m rope climb only - difficult for younger children to access. The large 1.4 m square deck and 2 sets of seating offer the perfect area for hanging out.



Unit includes
QTY


PZB025
1.4m Square Roof
1
PZA150
1.8m Fireman's Pole
1
PZB110
45 degree Triangular Deck
2
PZB100
1.4m Square Deck
1
DZD100
1m Square Deck
1
DZA075
Mesh Panel
2
PZT075
2.4m high Climbing Wall 1.6m wide
1
PZT080
2.4m high Climbing Wall
4
PZB315
Roof Infill Bracket
1
PZB310
Roof Barriers
2
DZD200
1m Triangular Deck
2
SCP320
3m Elbow Tunnel Chute
1
SCP320
3m Elbow Tunnel Chute
1
PZA010
D Rail (each)
4
PZT709
Bracing Leg (each)
2
PZB030
1.4m wide Seat
2
PZA970
Tunnel Chute Entrance
1
PZT920
Large Bracing Leg
4
PZT226
Arch Top Rail
2
PZA460
2.1m Rope Climb
1
PZB035
1.4m wide Seat Rail
2
PZ Posts
Playzone Posts
50.95


Safety Surfacing


Area
71 m²
Perimeter
41 m
HIC 2.4 m
71 m²


Side Elevation


Total Height
5 m
Deck Height
1.5 m
Deck Height
1.8 m
Deck Height
2.1 m
Deck Height
2.4 m
Deck Height
2.7 m
Deck Height
3 m







Climber For All



PZU685 bark, sand fill / PZW685 Rubber surfacing

There are six different ways to climb onto this Playzone, with higher agility accesses for the able bodied, a 2.4 m high vertical net, a climbing wall and a rope climb. Equally challenging to less agile children are the large inclined inclusive net, a drag ramp and high visibility, extra wide steps. In effect - two units in one, with fairly difficult step-ups and a hoop bridge between the two areas so children don't stray into an area too challenging for them. Transfer decks and side entry/exit slides mean good access for children with mobility problems.



Unit includes
QTY


PZB200
Corner Seat (each)
4
PZB020
Arch Top Rail 1.4m wide
2
PZB050
1.2m Stairs
1
PZB100
1.4m Square Deck
1
PZB110
45 degree Triangular Deck
2
DZD200
1m Triangular Deck
4
DZD100
1m Square Deck
2
PZB025
1.4m Square Roof
1
PZB140
1.2m Inclusive Slide left handed
1
PZB090
Chute Entrance
1
PZA080
High Steel Barrier
1
PZB010
1.2m high Inclined Net 1.4m wide
1
PZB035
1.4m wide Seat Rail
1
PZB030
1.4m wide Seat
1
PZB065
Level Drag Ramp Climber
1
PZA100
Curved Seat
1
PZA060
Curved Rail
1
PZT910
Curved Hoop bridge
1
PZT226
Arch Top Rail
3
PZT705
2.4m high Vertical Climbing Net
1
PZT075
2.4m high Climbing Wall 1.6m wide
1
PZT709
Bracing Leg (each)
4
DZA300
Steel Barrier
2
PZA430
1.2m Rope Climb
1
PZB070
Inclined Drag Ramp Climber 0.9m high
1
DZD320
0.6m high Deck Infill
1
PZA150
1.8m Fireman's Pole
1
PZ Posts
Playzone Posts
73.23m
PZB205
Table (one half)
2


Safety Surfacing


Area
87.5 m²
Perimeter
39 m
HIC 1.2 m
41.5 m²
HIC 2.4 m
46 m²


Side Elevation


Total Height
3.5 m
Deck Height
0.3 m
Deck Height
1.2 m
Deck Height
1.8 m







Scramble & Slide



PZU686 bark, sand fill / PZW686 Rubber surfacing

Our most popular inclusive unit, has a drag ramp, inclusive scramble net and steps. Once up high, there is a large 1.4 m wide deck and the reward of a 1.2 m high slide. being a 'U' shape chute, children slide securely down the centre increasing the speed and the fun! The raised start section at the top and the one-sided open run-out section at the bottom ease transfer, and allow helpers to give side support.



Unit includes
QTY


PZB050
1.2m Stairs
1
DZD200
1m Triangular Deck
3
DZD100
1m Square Deck
1
PZB140
1.2m Inclusive Slide left handed
1
PZB090
Chute Entrance
1
PZA080
High Steel Barrier
1
PZB010
1.2m high Inclined Net 1.4m wide
1
PZB020
Arch Top Rail 1.4m wide
2
PZB030
1.4m wide Seat
1
PZB110
45 degree Triangular Deck
2
PZB025
1.4m Square Roof
1
PZB100
1.4m Square Deck
1
DZA015
Binocular Rail
1
PZT270
Rope Climb Barrier
1
PZ Posts
Playzone Posts
50.63m
DZA300
Steel Barrier
1
PZB065
Level Drag Ramp Climber
1
PZB070
Inclined Drag Ramp Climber 0.9m high
1
PZA430
1.2m Rope Climb
1
DZA340
Mini Megaphone Rail
1
PZB035
1.4m wide Seat Rail
1


Safety Surfacing


Area
59 m²
Perimeter
30 m
HIC 1.2 m
59 m²


Side Elevation


Total Height
3.5 m
Deck Height
0.3 m
Deck Height
1.2 m







Two Storey



PZU687 bark, sand fill / PZW687 Rubber surfacing

More challenging, this is our highest inclusive unit at 1.5 m. Uniquely, this height allows both above and under-deck activities, with a puzzle panel, a mirror and a seating area below, for those who want to stay close to the ground. Up high, children can make noise with a mini-megaphone or music pipes. The 1.5 m slide is our longest and fastest, and tunnel shaped to give security and support.



Unit includes
QTY


DZA185
Rotary Puzzle Panel
1
DZA040
3 Seat Rail
1
DZA340
Mini Megaphone Rail
1
PZB035
1.4m wide Seat Rail
1
PZB030
1.4m wide Seat
1
PZB050
1.2m Stairs
1
PZB150
1.5m Inclusive Slide left handed
1
PZB090
Chute Entrance
1
PZ Posts
Playzone Posts
37.23m
PZT080
2.4m high Climbing Wall
1
PZB450
Music Pipes
1
PZB450
Music Pipes
1
DZA085
Mirror Panel
1
PZB075
Inclined Drag Ramp Climber 0.6m high
1
DZD200
1m Triangular Deck
2
PZB110
45 degree Triangular Deck
3
PZB100
1.4m Square Deck
1
PZB100
1.4m Square Deck
1


Safety Surfacing


Area
55 m²
Perimeter
33 m
HIC 1.5 m
55 m²


Side Elevation


Total Height
3 m
Deck Height
0.3 m
Deck Height
0.9 m
Deck Height
1.2 m
Deck Height
1.5 m







Skeleton Climber

PZU763/PZW763

A free play system with no decks and a myriad of ways to use it. Nets, flexible rungs and pull up ramps all combine to create a circuit of challenges.



Unit includes
QTY


PZT550
1.2m Slide Bars
1
PZT226
Arch Top Rail
3
PZ Posts
Playzone Posts
39.55m
PZA620
1.2m Pull Up Ramp
1
PZA125
Fireman's Pole
1
PZA210
Single Rung
6
PZA212
1m Straight Rail
19
PZA220
Hand/Foothold
2
PZT705
2.4m high Vertical Climbing Net
1
PZA060
Curved Rail
1


Safety Surfacing


Area
59 m²
Perimeter
30 m
HIC 2.4 m
59 m²


Side Elevation


Total Height
2.55 m







Mountain Climber

PZU764/PZW764

An impressive tube chute at 2.4 m high is the reward for an arduous climb. Whether a vertical ascent via a rope climb, or a combination of climbing wall traverses and bridge crawls, this unit is a complex challenge.



Unit includes
QTY


PZA150
1.8m Fireman's Pole
1
DZD200
1m Triangular Deck
4
PZA080
High Steel Barrier
1
PZA530
1.8m Pole Climb
1
PZ Posts
Playzone Posts
39.7m
PZA210
Single Rung
8
PZT226
Arch Top Rail
4
PZA970
Tunnel Chute Entrance
1
PZT075
2.4m high Climbing Wall 1.6m wide
1
PZA460
2.1m Rope Climb
1
PZT910
Curved Hoop bridge
1


Safety Surfacing


Area
71.5 m²
HIC 2.4 m
37.5 m²
HIC 1.8 m
12.5 m²
HIC 1.5 m
21.5 m²


Side Elevation


Total Height
4 m
Deck Height
2.4 m
Deck Height
2.1 m
Deck Height
1.8 m











Spider Climber

PZU765/PZW765



As the name suggests this system extends in all directions with each leg offering a different challenge.



Unit includes
QTY


PZ Posts
Playzone Posts
40.3m
PZT226
Arch Top Rail
3
PZA212
1m Straight Rail
4
PZT710
Parallel Bars
1
PZA232
2m Inclined Hand Over Hand
1
PZA140
1.5m Fireman's Pole
1
PZT555
1.5m Slide Bars
1
PZA360
1.5m Special Net
1
PZA440
1.5m Rope Climb
1
PZA610
1.5m Pull Up Ramp
1


Safety Surfacing


Area
58 m²
HIC 1.5 m
30 m²
HIC 2.4 m
28 m²
Perimeter
33.5 m


Side Elevation


Total Height
3.42 m
Deck Height
1.5 m













The Journey

PZU766/PZW766



A large unit that can be approached from either end by ramps or the more challenging hoop climb or incline net. For children of all abilities this unit encourages children to travel to either end to play games or slide back down to the ground.



Unit includes
QTY


DZA070
Head Through Panel
1
DZA005
D Rail (each)
4
DZA105
0.6m Climb Up Ramp
1
DZD300
0.3m high Deck Infill
2
DZA210
Abacus Rail
1
DZA130
0.6m Ring Climber
1
PZB130
0.9m Inclusive Slide left handed
1
DZD200
1m Triangular Deck
4
PZB025
1.4m Square Roof
1
DZA185
Rotary Puzzle Panel
1
PZ Posts
Playzone Posts
78.55m
DZA340
Mini Megaphone Rail
1
DZA215
Oxo Rail
1
PZB110
45 degree Triangular Deck
5
PZB450
Music Pipes
1
PZB450
Music Pipes
1
PZB300
1.4m Steel Barrier
1
PZB035
1.4m wide Seat Rail
1
PZB070
Inclined Drag Ramp Climber 0.9m high
1
PZB065
Level Drag Ramp Climber
1
DZA115
0.6m Steel Ladder
1
PZB100
1.4m Square Deck
1
PZB030
1.4m wide Seat
1
DZA205
Squeeze Frame
1
DZD100
1m Square Deck
3
DZA090
Plain Panel
1
PZB190
"3m Inclined Ramp
2
PZB020
Arch Top Rail 1.4m wide
2
PZB010
1.2m high Inclined Net 1.4m wide
1
PZA080
High Steel Barrier
1
PZA120
0.9m Fireman's Pole
1
DZA085
Mirror Panel
1
PZB090
Chute Entrance
1


Safety Surfacing


Area
100.5 m²
HIC 1.2 m
27 m²
HIC 0.9 m
37.5 m²
HIC 0.6 m
36 m²
Perimeter
48 m


Side Elevation


Total Height
3 m
Deck Height
1.2 m
Deck Height
0.9 m
Deck Height
0.6 m











Starter Climber



PZU681 bark, sand fill / PZW681 Rubber surfacing



Unit includes
QTY


DZD100
1m Square Deck
1
DZD200
1m Triangular Deck
2
PZT226
Arch Top Rail
1
PZS220
1.2m Traditional Slide
1
PZA050
Arch Entrance
1
PZA260
1.2m Steel Ladder
1
PZA080
High Steel Barrier
1
PZT640
1.2m Hoop Climber
1
PZA130
1.2m Fireman's Pole
1
PZA390
0.9m/1.2m Scramble Net
1
PZ Posts
Playzone Posts
18.45


Safety Surfacing


Area
41 m²
Perimeter
26 m
HIC 1.2 m
41 m²


Side Elevation


Total Height
2.55 m
Deck Height
1.2 m
