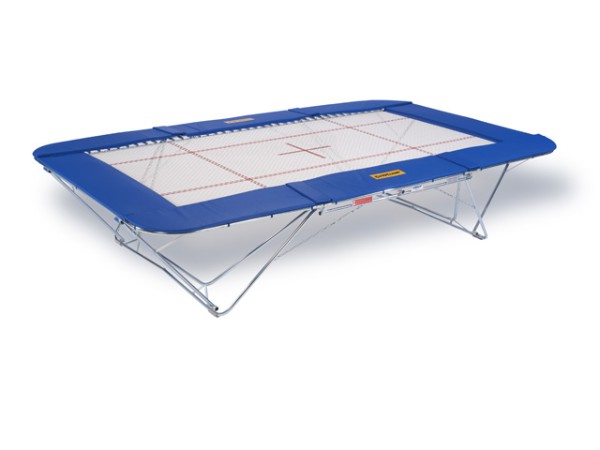

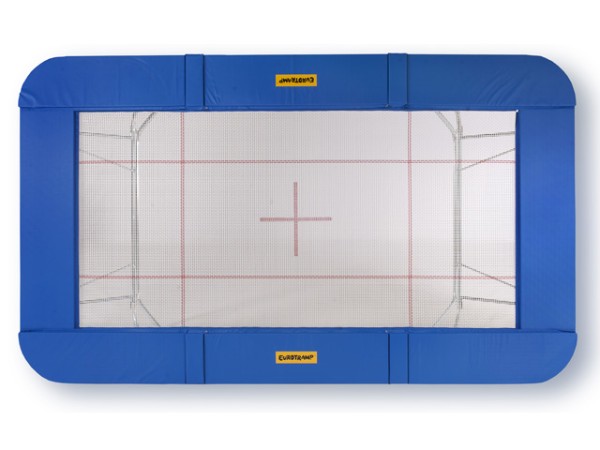

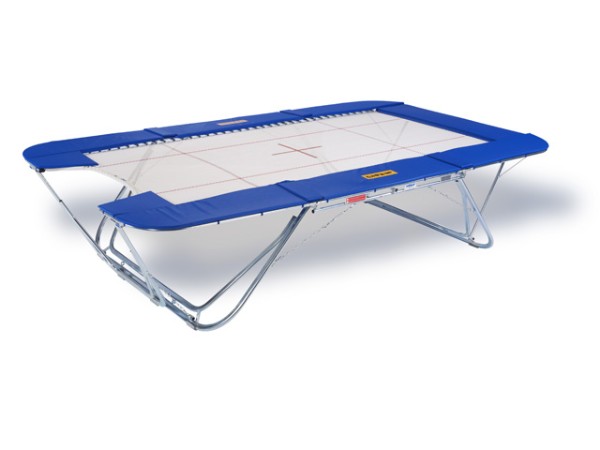

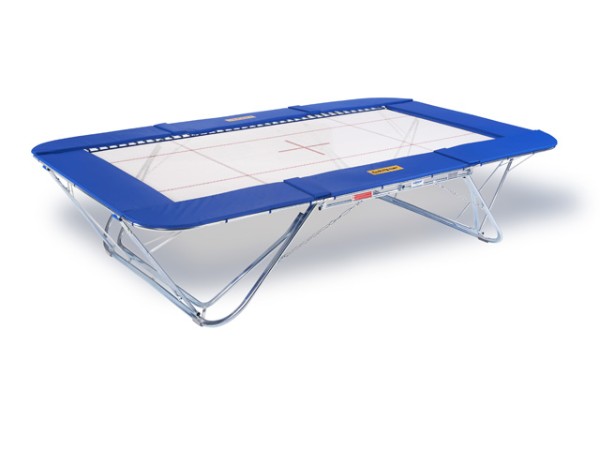

Large trampolines Trampoline: Premium 4x4Article No.: 08040 / 08140 / 08240 It is the high-end apparatus among the Eurotramp competition trampolines. The Premium 4 x 4 is our latest development. This new top-of-the.range model is equipped with the most powerful jumping bed which has ever been certified by the International Gymnastics Federation FIG. Its jumping bed offers the maximum allowed jumping performance according to FIG standards, so that gymnasts can obtain and maintain the required training height with much less effort. With its equal distributionion of power, the trampoline also has well-balanced jumping characteristics, thus offering the athlete a high measure of safety and excellent controllability. The Premium 4 x 4 is the world‘s most powerful FIG-certified competition trampoline.

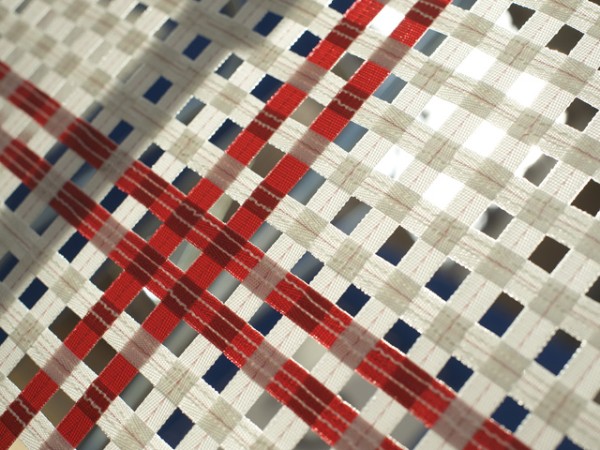

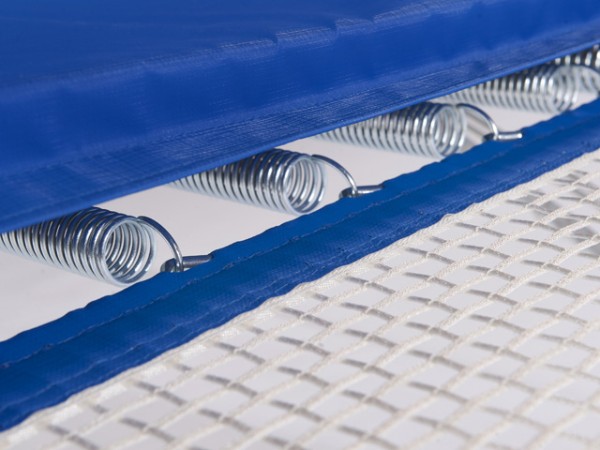

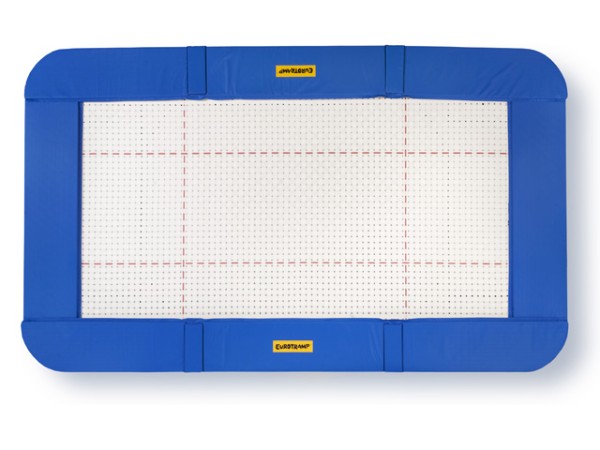

This year the Premium 4 x 4 will be used at six of seven World Cups, at the World Gymnaestrada in Switzerland and at many other significant international competitions. Product detailsAccessoriesSpare partsDownloadsSales partners Frame: Flat-oval steel tube 520 x 305 x 115 cm made of special steel; galvanized Braces: Double-brace system for extreme stiffness of the leg section Legs: Flat-oval tube made of special steel, reinforced by braces; galvanized Jumping bed (426 x 213 cm) with 4 x 4 mm wide woven nylon bands 110 steel springs (length 258 mm, Ø 29 mm); 8 reinforced corner springs (length 258 mm, Ø 39 mm); galvanized Shock-absorbing and robust frame pads Genuine hologram seal Total weight incl. lifting roller stands 265 kg
|
Storing dimensions on lifting roller stands: | 334 x 80 x 220 cm (resp. 197 cm when lowered) | Storing dimensions on roller stands: | 321 x 80 x 220 cm | | | Loading dimensions trampoline: | 308 x 28 x 192 cm | + loading dimensions lifting roller stands: | (2 pc.) à 80 x 28 x 130 cm (each 12.5 kg) | + loading dimensions roller stands: | (2 pc.) à 80 x 21 x 130 cm (each 9.5 kg) |

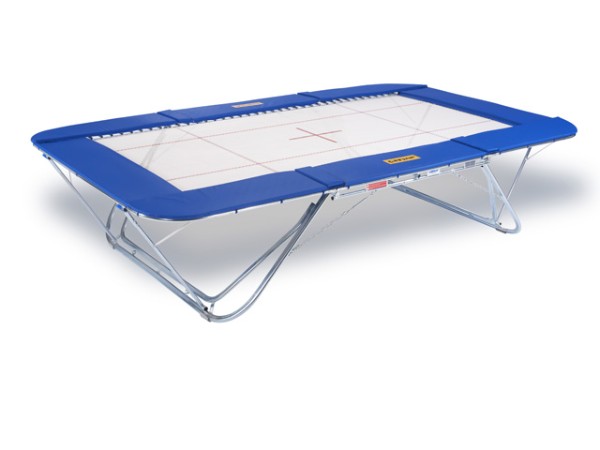

Modelsitem 08040 Premium 4x4 mm, 1 pair roller stands, FIG certificate item 08140 Premium 4x4 mm, 1 pair lifting roller stands, FIG certificate item 08240 Premium 4x4 mm, 1 pair new lifting roller stands "Safe & Comfort", FIG certificate Trampoline: Grand Master Exclusiv Premium 6x4 and 5x4Article No.: 08000 - 08210 The Grand Master Exclusiv Premium 6x4 and 5x4 trampolines are also among the finest in the Eurotramp competition trampoline series. The Premium line was designed in view of the 2008 Olympic Games in Beijing, China. It offers innovative, specially designed jumping beds for even more control on the side jumping area. Furthermore, the Premium series also has an altered leg construction: the frame was braced with additional struts at the end of the narrow sides. Consequently, the Premium models offer the athletes an even higher jumping stability. Nonetheless, the upper frame still offers the necessary flexibility for balanced jumping action and excellent throwing features. The advantage of this design lies among other things, in the fact that the trampolines are only slightly heavier and yet still very easy to handle. All high-quality material components combined with diligent workmanship guarantee brilliant jumping qualities and outstanding safety standards. That is why the Grand Master Exclusiv Premium 6x4 was the undisputed number one in the competitive sector until the Premium 4x4 was developed, and was used both in national and international championships, as well as all types of worldwide major events (e.g. 2008 Olympic Games in Beijing). The performance of the Premium 5x4 lies between that of the 6x4 and the 4x4 version. The 5x4 jumping bed offers the possibility to prepare for competitions with the tried and tested Eurotramp jumping bed quality. Product detailsAccessoriesSpare partsDownloadsSales partners Frame: Flat-oval steel tube 520 x 305 x 115 cm made of special steel; galvanized Braces: Double-brace system for extreme stiffness of the leg section Legs: Flat-oval tube made of special steel, reinforced by braces; galvanized Jumping bed (426 x 213 cm) with 4 x 6 mm or 4 x 5 mm wide woven nylon bands 110 steel springs (length 258 mm, Ø 29 mm); 8 reinforced corner springs (length 258 mm, Ø 39 mm); galvanized Shock-absorbing and robust frame pads Genuine security hologram seal Total weight incl. (Lifting) roller stands: 265 kg
Storing dimensions on lifting roller stands: | 334 x 80 x 220 cm (resp. 197 cm when lowered) | Storing dimensions on roller stands: | 321 x 80 x 220 cm | | | Loading dimensions trampoline: | 308 x 28 x 192 cm | + loading dimensions lifting roller stands: | (2 pc.) à 80 x 28 x 130 cm (each 12.5 kg) | + loading dimensions roller stands: | (2 pc.) à 80 x 21 x 130 cm (each 9.5 kg) |
Modelsitem 08000 Grand Master Exclusiv Premium 6 x 4 mm, 1 pair roller stands (FIG certificate) item 08100 Grand Master Exclusiv Premium 6 x 4 mm, 1 pair lifting roller stands (FIG certificate) item 08200 Grand Master Exclusiv Premium 6 x 4 mm, 1 pair new lifting roller stands "Safe & Comfort" (FIG certificate) tem 08010 Grand Master Exclusiv Premium 5 x 4 mm, 1 pair roller stands (FIG certificate) item 08110 Grand Master Exclusiv Premium 5 x 4 mm, 1 pair lifting roller stands (FIG certificate)item 08210 Grand Master Exclusiv Premium 5 x 4 mm, 1 pair new lifting roller stands "Safe & Comfort" (FIG certificate) Grand Master ExclusivArticle No.: 04000 - 05200 The Grand Master Exclusiv 6 x 4 mm is the predecessor model of the Grand Master Exclusive Premium and was the Eurotramp Company‘s top model for many years. A jumping bed made with the highest precision out of 144 pieces of woven nylon bands 4 mm wide lengthwise and 222 pieces 6 mm wide laterally woven nylon bands is held by 118 high-performance springs. Special reinforced springs in the corners give even more stability. The galvanized frame is made from special steel, which at the same time guarantees enormous stability as well as the necessary elasticity of the frame.
The Grand Master Exclusiv meets the international competition regulatons of the FIG and was the competition trampoline at the Olympic Games 2000 in Sydney, Australia and in Athens, Greece in 2004. It is a high-end product which has been used for many years in sport and expert circles and has received great response. Even today it is still best suited to be used in top-class competitions. Product detailsAccessoriesSpare partsDownloadsSales partners - Frame: Flat-oval steel tube 520 x 305 x 115 cm made of special steel; galvanized

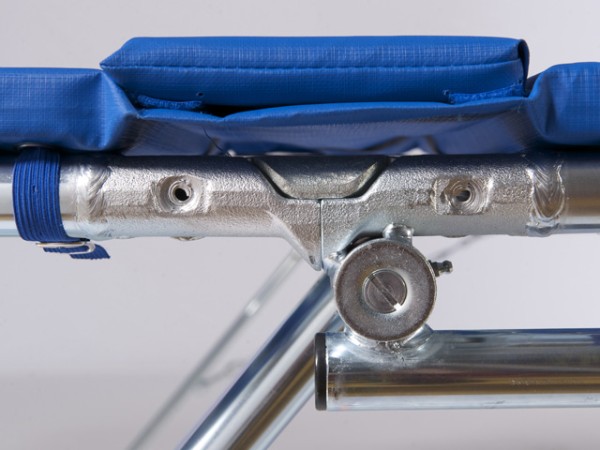

- Legs: Flat-oval tube made of special steel, reinforced by braces; galvanized

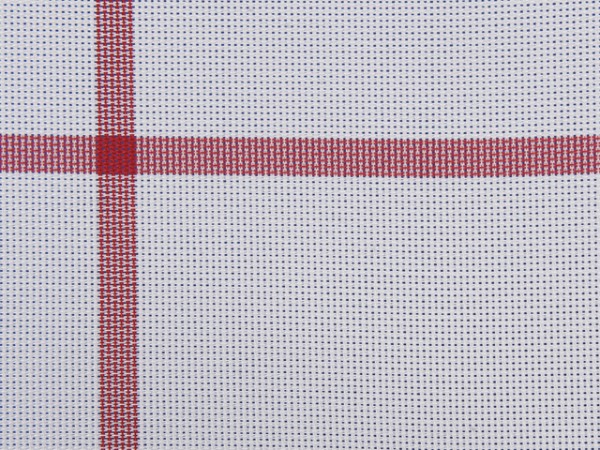

- Jumping bed (426 x 213 cm) with 6 x 4 mm or 6 mm wide woven nylon bands
- 110 steel springs (length 258 mm, Ø 29 mm); 8 reinforced corner springs (length 258 mm, Ø 39 mm); galvanized
- Shock-absorbing and robust frame pads
- Genuine security hologram seal
- Total weight including lifting roller stands: 250 kg
|
Storing dimensions on lifting roller stands: | 334 x 80 x 220 cm (resp. 197 cm when lowered) | Storing dimensions on roller stands: | 321 x 80 x 220 cm | | | Loading dimensions trampoline: | 308 x 28 x 192 cm | + loading dimensions lifting roller stands: | (2 pc.) à 80 x 28 x 130 cm (each 12,5 kg) | + loading dimensions roller stands: | (2 pc.) à 80 x 21 x 130 cm (each 9,5 kg) |

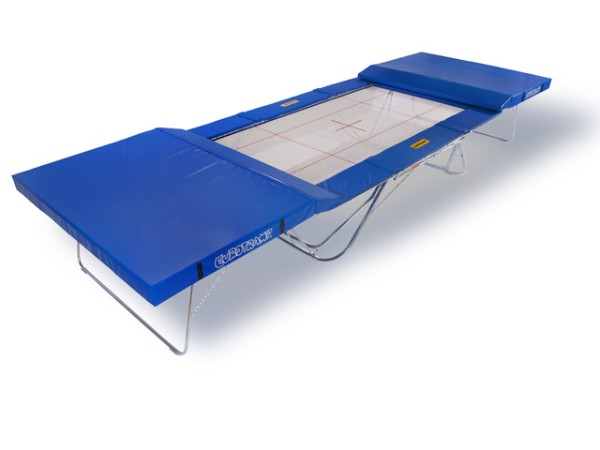

Modelsitem 04000 Grand Master Exclusiv 6 x 4 mm, 1 pair roller stands (FIG certificate) item 04100 Grand Master Exclusiv 6 x 4 mm, 1 pair lifting roller stands (FIG certificate) item 04200 Grand Master Exclusiv 6 x 4 mm, 1 pair new lifting roller stands "Safe & Comfort" (FIG certificate) item 05000 Grand Master Exclusiv 6 x 6 mm, 1 pair roller stands (FIG certificate) item 05100 Grand Master Exclusiv 6 x 6 mm, 1 pair lifting roller stands (FIG certificate) item 05200 Grand Master Exclusiv 6 x 6 mm, 1 pair new lifting roller stands "Safe & Comfort" (FIG certificate) Safety platforms and safety mats "Competition"Article No.: 27000 / 28000 The safety platforms and safety mats “Competition” offer optimum safety standards for training and competition. These were the apparatus used at the Olympic Games 2000, 2004 and 2008 and have proven their suitability for more than two decades at almost all World and European Championships. The safety platforms made from the proven steel, which is especially produced for Eurotramp, are extremely stable. The carefully selected material components guarantee longevity.

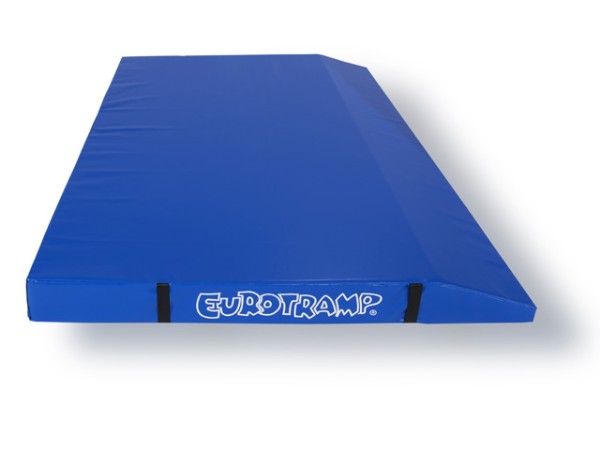

The safety mats with wedge consist of a highly qualitative PE-foam that attains optimum cushioning and therefore minimizes the risk of injury. The covering consists of a special tear-resistant PVC-tarpaulin. The wedge can be removed within seconds so that the mats can also be utilised elsewhere.

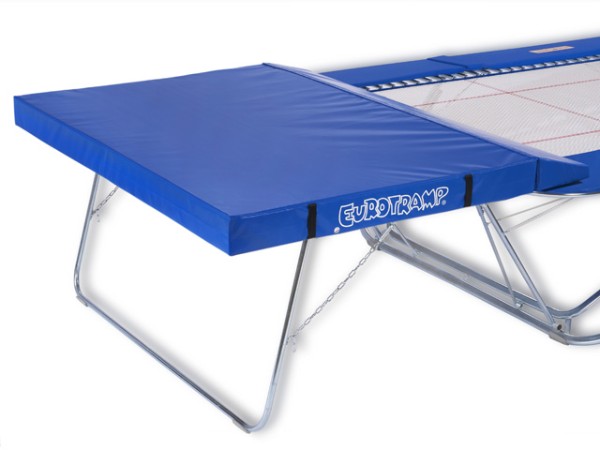

In the event that two trampolines have to be placed closely next to each other, only one safety platform can be placed between the trampolines. In this case, one safety mat with double wedge will serve the purpose. However, one must take into account that both athletes will only have one common safety mat in the middle of the trampolines. Product detailsSpare partsDownloadsSales partners Safety platforms "Competition" - Frame: Flat-oval steel tube, 185 cm long, 265 cm wide, 108 resp. 115 cm high, galvanized
- Leg: Round tube made of special steel; galvanized
- Polypropylen bed

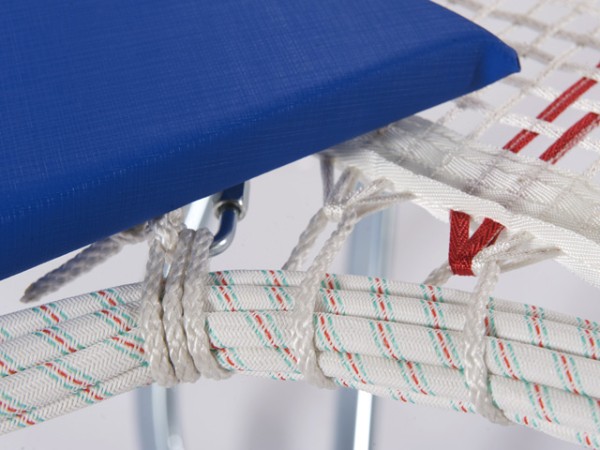

- Fixation set for jumping bed: Rubber cable( Ø 11,4 mm)
- Total weight: 45 kg (1 piece)
- Optional: Transport wheels, also for later fixation
Safety mats "Competition" - Safety mat 300 x 200 x 20 cm and wedge 300 x 40 x 20 cm (removable) made from high-quality PE-foam and tear-resistant PVC tarpaulin covering
- Total weight: 42,5 kg (1 piece)

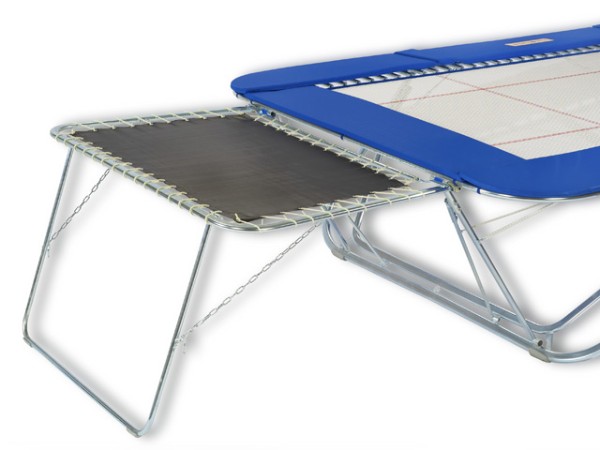

Loading and storing dimensions safety platform: 265 x 185 x 7 cm (1 piece) Loading and storing dimensions safety mats: (1 piece) 300 x 200 x 20 cm (36 kg) + loading dimension wedge: (1 piece) 300 x 40 x 20 cm (6,5 kg) Loading and storing dimensions safety mat with double wedge: (1 piece) 300 x 200 x 20 cm (39 Kg) Modelsitem 27000 Safety platforms “Competition” 1 pair (FIG-Certificate) item 27200 Wheels for easier transport of the safety platforms, also for later fixation item 27500 Safety platforms "Competition" 1 pair, for Master models item 28000 Safety mats with wedges “Competition” 1 pair (FIG-Certificate) item 28201 Safety mat with double wedge Safety platforms and safety mats "Integral"Article No.: 29000 / 30000 These safety platforms are firmly fixed to the trampoline and can easily and quickly be mounted and dismantled if necessary (dismantling within 2 minutes). Therefore, no additional storage space is required for the safety platforms.

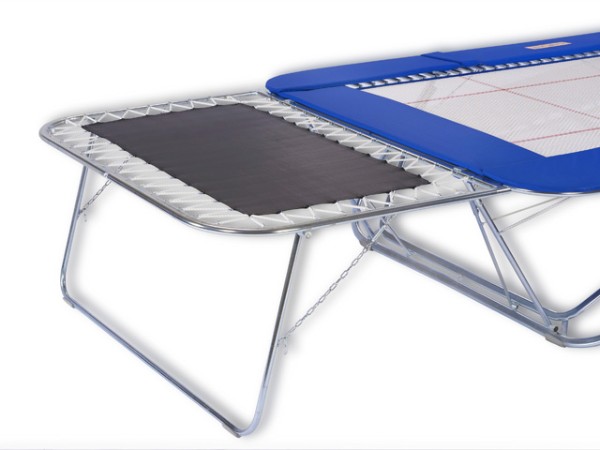

The applicable mats are a wedge length shorter than the safety mats used in a competition, nevertheless they offer a sufficient safety area. Due to the favourable price and high functionality, they are the first choice for schools and recreational sport. Product detailsSpare partsDownloadsSales partners Safety platforms "Integral" - Frame: Flat-oval steel tube, 145 cm long, 220 cm wide, 108 resp. 115 cm high made of special steel; galvanized
- Legs: Round tube made of special steel; galvanized
- Polypropylen bed
- Fixation set for jumping bed: Rubber cable ( Ø 8 mm)
- Total weight: 25 kg (1 piece)
Safety mats "Integral" - Mat 300 x 200 x 20 cm with integrated wedge made of high-quality PE-foam and tear-resistant PVC Tarpaulin covering
- Total weight: 34 kg (1 piece)
Loading and storing dimensions safety platform: 145 x 220 x 4 cm (1 piece) Loading and storing dimensions safety mat: 300 x 200 x 20 cm (1 piece) Modelsitem 30000 Safety platforms "Integral" 1 pair * item 30500 Safety platforms "Master Integral" 1 pair item 29000 Safety mats "Integral" 1 pair *
*only for Grand Master and Grand Master Exlusiv models | Article No.: Jumping bed 186/167 x 114 cm made of polypropylene, trapezoidal |
| Article No.: E33230 Rubber cable (length 410 cm, Ø 8 mm) |
| Article No.: E33231 Rubber cable (length 340 cm, Ø 8 mm) |
| Article No.: E33232 Rubber cable (length 250 cm, Ø 8 mm) |
| Article No.: E44093 Safety bolt complete with strap |
| Article No.: E45102 Floor protection with screws |
Spare part list | PDF | |
