Version | Reference |
Boltlength: 135 mm | 200636.91 |
Boltlength: 160 mm | 200636.90 |
Boltlength: 180 mm | 200636.92 |
Boltlength: 200 mm | 200636.94 |

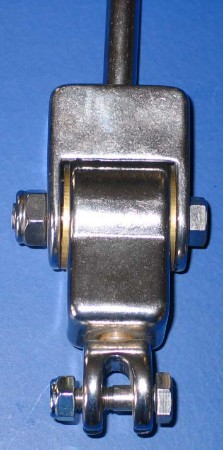

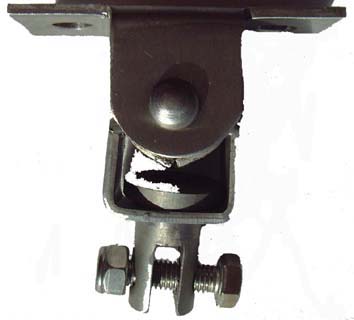

Swing joint with swivel
EXTRA MASSIVE, maintenace free
casted stainless steel
Version | Reference |
Fixation with 2 x 12 mm bolts, for square wood | 200635.115 |
as above but for round wood | 200635.125 |

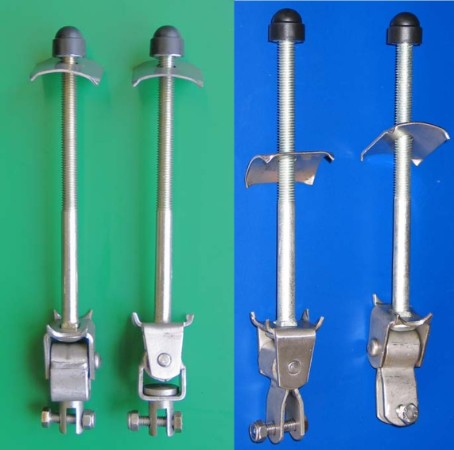

Swing joint with swivel
with premium needle bearing
EXTRA MASSIVE, maintenance free
M12 fixation bolt casted stainless steel
Version | Reference |
Bolt length: 135 mm | 200636.391 |
Bolt length: 160 mm | 200636.390 |
Bolt length: 185 mm | 200636.392 |
Bolt length: 200 mm | 200636.394 |
with flange for square wood | 200635.315 |
with flange for round wood | 200635.325 |

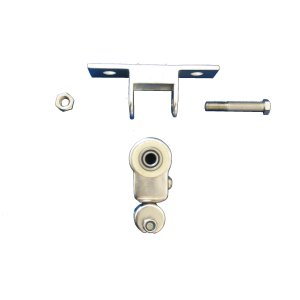

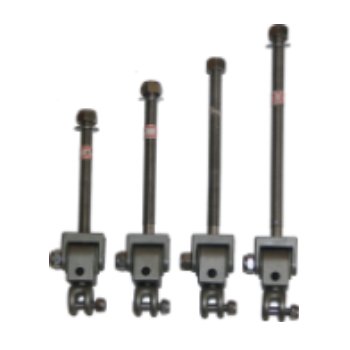

Swing joint with swivel Standard Execution
M12 fixation bolt
casted stainless steel
Version | Reference |
Bolt length: 135 mm | 200636.591 |
Bolt length: 160 mm | 200636.590 |
Bolt length: 185 mm | 200636.592 |
Bolt length: 200 mm | 200636.594 |
with flange for square and round wood | 200635.515 |

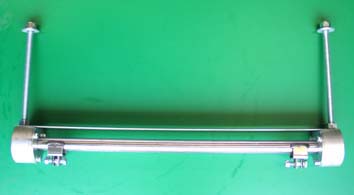

Swing joint with axle
with swivel, with 2 x M12x200 mm thread bolts, stainless steel,
Version | Reference |
width: 650 mm | 200637 |
as above but width: 1200 mm | 200637-120 |

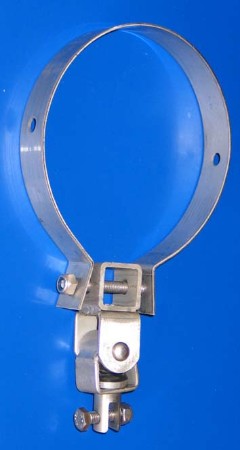

Swing joint with cuff
with swivel
Material: stainless steel
Version | Reference |
for round wood Ø140 mm | 200637.005 |
as above but for square wood 110x110 mm | 200637.006 |

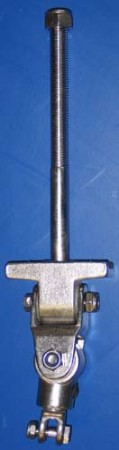

Cardan joint with bolt for ring swings
with M16 bolt
Length: 220 mm
Version | Reference |
casted stainless steel | 200636.500 |

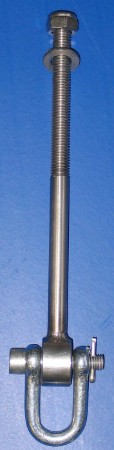

Safety bolt for cardan joint with bolt
for safety chain
Length: 220 mm

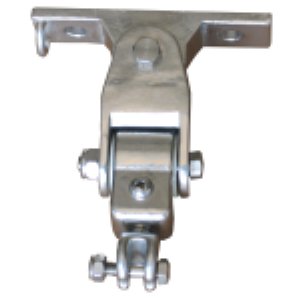

Cardan joint with flange for ring swings
casted stainless steel
Version | Reference |
with safety chain attachment, for square and round wood | 200636.580 |

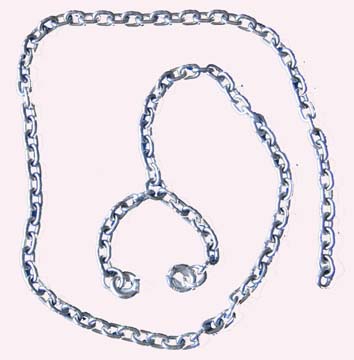

Chains
Version | Reference |
Ø 6 mm, "Y"-Form with 2 ringnuts, galvanized Standard length: 200 cm | 202004 |
Endless chain, galvanized, open ended, per meter | 202000 |
Ø 6 mm, "Y"-Form with 2 ringnuts, stainless steel Standard length: 200 cm | 202010 |
Endless stainless steel chain, open ended, per meter | 202032 |
Please ask for special length! | |

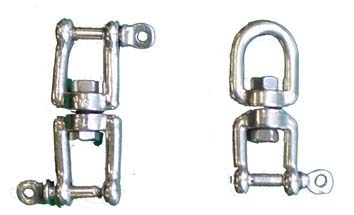

Swivel
Version | Reference |
Ø 6 mm, stainl. steel with 2 fixation forks | 200710 |
Ø 8 mm, stainl. steel with 2 fixation forks | 200712 |
Ø 6 mm, stainl. steel with fixation fork and eye | 200715 |
