Fall protection

Safty fall mats

For to use on solid ground.

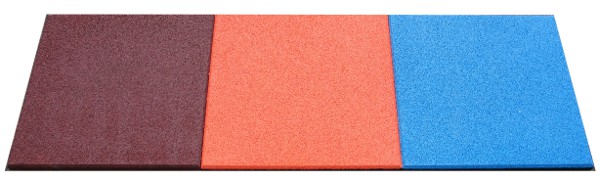

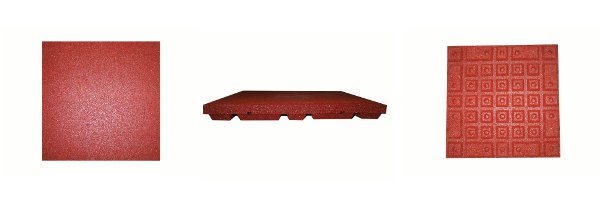

Rubber safety fall mats

All safety fall mats are made from rubber granulat. Standard colour is red. Other colours like green, grey or black are possible on demand. There are 3 standard thicknesses; 30, 50 & 80 mm. Standard size is 50 x 50 cm. Tiles of the thickness 50 mm are although available in the sizes 50x100cm and 100x100 cm. All mats will be delivered with connection pegs.



Reference Size Fallheight acc. EN1177
800620 50x50x3 cm max. 100 cm
800600 50x50x5 cm max. 200 cm
800610 100x50x5 cm max. 200 cm
800615 100x100x 5cm max. 200 cm
800630 50x50x8 cm max. 300 cm

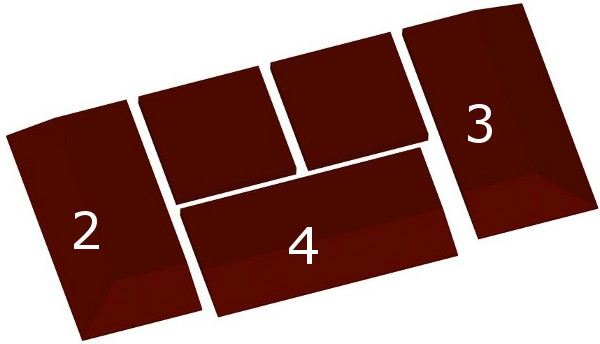

Accessories for safety fall mats 50mm



Number: 2
Corner part LEFT, 50x100x5 cm,
Reference: 800640

Number: 3
Corner part RIGHT, 50x100x5 cm,
Reference: 800641

Number: 4
Side part, 50x100x5 cm
Reference: 800642

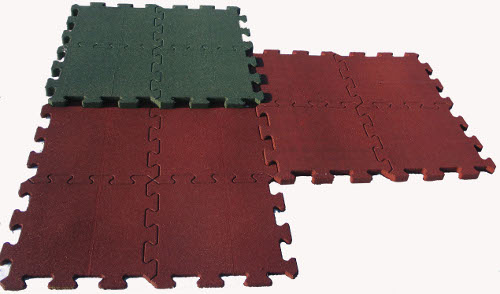

Safety Fall Mats Puzzle



Reference Size Fallheight acc. EN1177 Colour
800680 100x100x1.5 cm floor covering only red
800681 100x100x1.5 cm floor covering only green
800670 100x100x3 cm max. 100 cm red
800671 100x100x3 cm max. 100 cm green
800660 100x100x4.5 cm max. 150 cm red
800661 100x100x4.5 cm max. 150 cm green

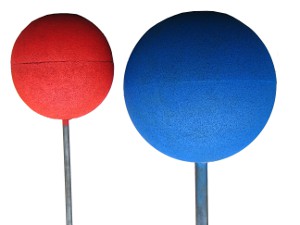

Rubber Balls

All rubber balls will be delivered with a 500 cm long galvanized pole for ground fixation.




Reference Size Fallheight acc. EN1177 Colour
800710 Ø 20 cm no fall protection red
800711 Ø 40 cm no fall protection red
800712 Ø 60 cm no fall protection red

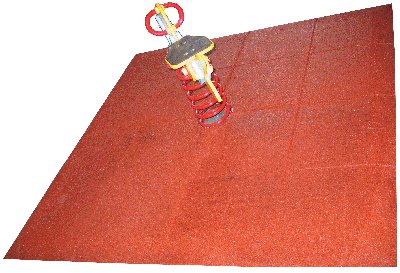

Safety fall mats for spring riders



Size: 200x200x4.5 cm, Complete set, consisting of 4 mats of 1 sqm with bevelled edges, with a hole for a Ø 200 mm spring in the middle.
Colour: red
Reference: 800690

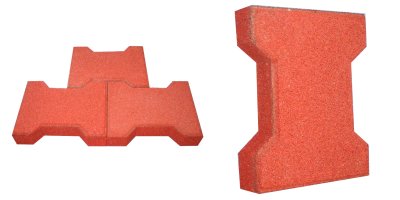

Paving stone, 45 mm thick



Ref.: 800830
per sqm
Thickness 45 mm, Size 20x16cm, Colour: red
Usable as a floorcovering



Accessories for all safety fall mat products

Ref.: 800875.S

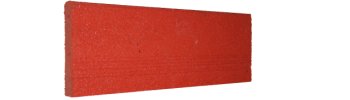

Kerbstone, Size 750x280x40 mm, Colour: red
Usable as a soft kerbstone





Ref.: 800801

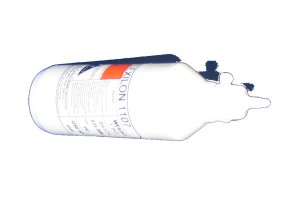

Special glue for safety fall mats made from rubber granules
One package contains 1,1 kg
Enough for approx. 10 sqm.
