Slides-Module slides-Tube slide-Stainless steel slide
Flange or tower slide "AGI"

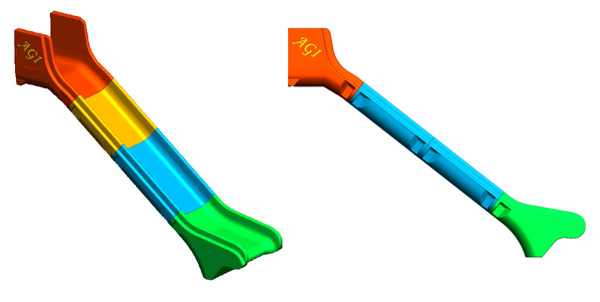

PE-Module-slide
Two ways of connection to tower:
- from above on the platform
- flange on of the tower sides
All slides incl. fixation material and ground anchors
Outer width: 78 cm
Inner width: 60 cm
Platform height:
1200 mm | Platform height:
1500 mm | Platform height:
1750 mm | Platform height:
2000 mm | Platform height:
2500 mm | Reference:
220600, 31,800.- | Reference:
220610 | Reference:
220620 | Reference:
220630 | Reference:
220640 |

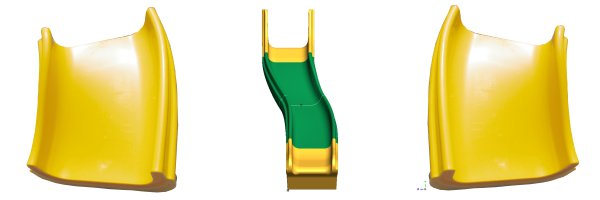

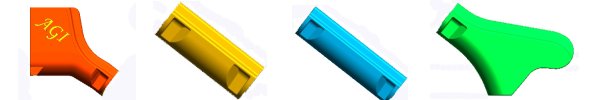

Entry part
| Middle part small
Length 80 cm
| Middle part large
Length 106 cm | Exit
| Reference:
220680 | Reference:
220685 | Reference:
220690 | Reference:
220695 |
| Left corner | Right corner | Reference:
220700 | Reference:
220705 |

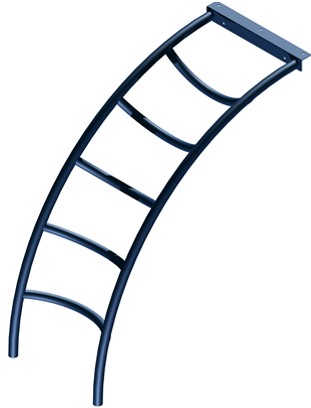

Rounded ladder
for tower fixation
produced acc. EN1176
| Version | Reference | Platform height: 1200 mm
galvanized | 204090 | Platform height: 1200 mm
galvanized + powder coated red | 204091 | Platform height: 1500 mm
galvanized | 204092 | Platform height: 1500 mm
galvanized + powder coated red | 204093 | Platform height: 1800 mm
galvanized | 204094 | Platform height: 1800 mm
galvanized + powder coated red | 204095 | Platform height: 2000 mm
galvanized | 204096 | Platform height: 2000 mm
galvanized + powder coated red | 204097 |

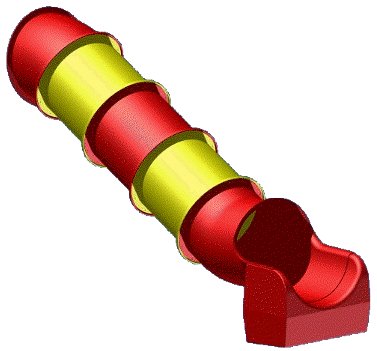

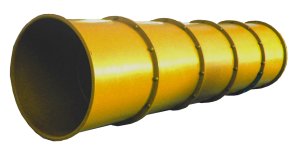

Tube slide PE
Platform height: 100 - 400 cm
Innerdiam.: approx. 75 cm
Colour: yellow / red
Delivered in single modules for self asembly
Reference
| Platform height
| Length | | 220905 | 1,00 m | ca. 2,60 m | | 220910 | 1,25 m | ca. 3,05 m | | 220920 | 1,50 m | ca. 3,47 m | | 220925 | 1,80 m | ca. 3,84 m | | 220930 | 2,00 m | ca. 4,30 m | | 220940 | 2,50 m | ca. 5,19 m | | 220950 | 3,00 m | ca. 6,05 m | | 220960 | 3,25 m | ca. 6,49 m | | 220970 | 3,50 m | ca. 7,14 m | | 220980 | 4,00 m | ca. 7,77 m | Accessories for tube slides | Reference | Description | | 220030 | PE-Panel | | 220040 | HPL-Panel | Usable as sloope slide in any length. Please ask for a special offer. Tailor made slides possible
Creep tunnel
The single elements of the tube slide can also be used to build a creep tunnel. You can choose between a 75cm and 25cm straight element or bows of 30° or 90°. With these elements you can build your own creeptunnel as per your preferences. The tunnel will be delivered pre-assembled. Not suited for subsurface installation!Only for free standing constructions!

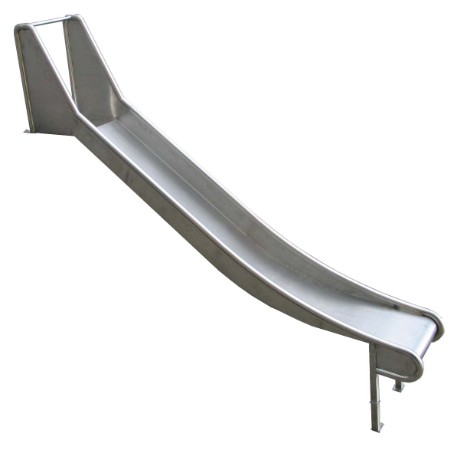

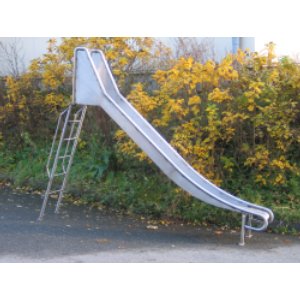

Tunnel element 75 cm Ref.: 220885 Tunnel element 25 cm Ref.: 220890 Tunnel element 30° Ref.: 220900 Tunnel element 90° Ref.: 220895 Stainless Steel Slide with Ladder Free standing stainl. steel slide with ladder
Version
| Reference | Platform height: 100 cm,
Width: 48 cm | 220460 | Platform height:
125 - 150 cm
Width: 48 cm |
220470
| Platform height:
175 - 200 cm

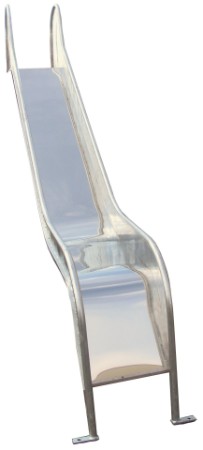

Width: 48 cm | 220480 | Stainless steel slide
Platform height:
100 cm
| Platform height:
125/150 cm
| Platform height:
175/200 cm | Platform height: 100 cm | Platform height: 125/150cm | Platform height: 175/200cm | Width: 480 mm
| Width: 480 mm
| Width: 480 mm | Width:980 mm | Width: 980 mm | Width: 980 mm | Reference:
220395 | Reference:
220400 | Reference:
220405 | Reference:
220435 | Reference:
220430 | Reference:
220440 | | | | | | | | | With one wave | Platform height:
125/150 cm
width: 480 mm | Reference:
220450 | |
Metal slide
galvanized
with stainl. steel sliding surface
Alternative for slides completely made of stainless steel
| Version | Reference | for public playgrounds
width: 480 mm
Platform height: 1000 mm | 220415 | as above but
Platform height:
1250/1500 mm | 220420 | as above but
Platform height:
1750/2000 mm | 220425 |

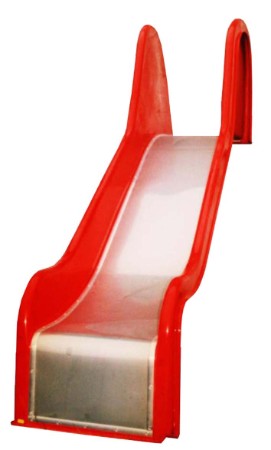

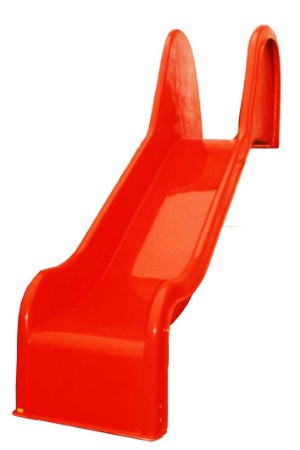

GPR slide "Mickey"
with stainl. steel
Standard colour: RED RAL 3020
Special colours on demand
| Version | Reference | for public playgrounds
width: 650 mm
Platform height: 1200 mm
Lenght: 250 cm | 220168 | as above but
Platform height: 1500 mm
Length: 325 cm | 220170 | as above but
Platform height: 1800 mm
Length: 365 cm | 220173 | as above but
Platform height: 1950 mm
Length: 390 cm | 220178 | GPR slide "Mickey"
Standard colour: RED RAL 3020
Special colours on demand
| Version | Reference, Price THB | for public playgrounds
width: 440 mm
Platform height: 750 mm
Lenght: 190 cm | 220143, 7,800.- | as above but
Platform height 900 mm
Length: 210 cm | 220145, 15,500.- | for public playgrounds
width: 650 mm
Platform height: 1200 mm
Length: 250 cm | 220148, 26,600.- | as above but
Platform height: 1500 mm
Length: 325 cm | 220150, 28,500.- | as above but
Platform height: 1800 mm
Length: 365 cm | 220153, 31,600.- | as above but
Platform height: 1950 mm

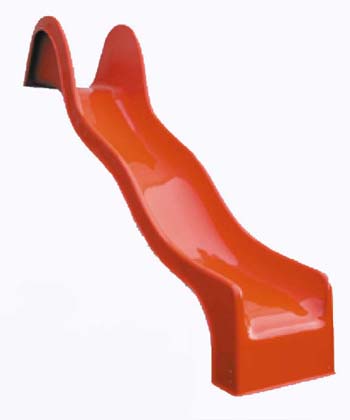

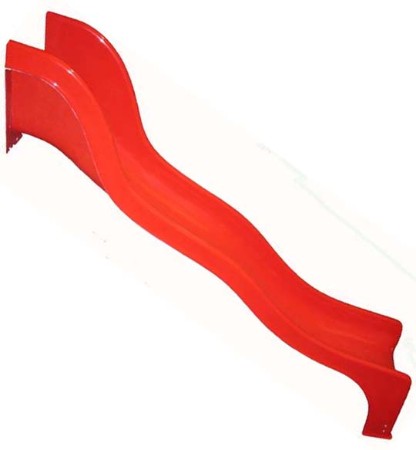

Length: 390 cm | 220158, 35,200.- | GPR Slide "Wave"
| Version | Reference, Price THB | Platform height: 1500 mm
Length: 325 cm
One wave | 220250, 28,500.- | Platform height: 1500 mm
Length: 325 cm
Two waves |
220260, 33,900.- | Platform height: 2000 mm
Length: 460 cm
Two waves | 220300, 40,500.- | GPR slide Width: 1000 mm
| Version | Reference | for public playgrounds
Platform height: 1500 mm
Length: 325 cm
with stainl. steel cover | 220215 | as above but

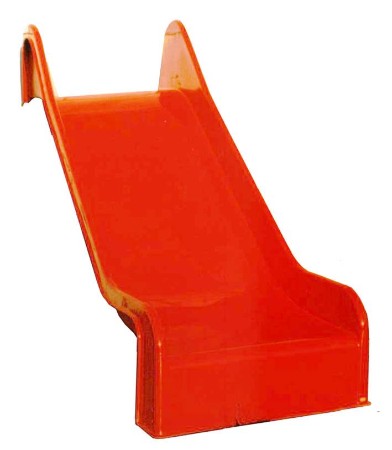

without stainl. steel cover | 220210 | GPR slide "Dino"
| Version | Reference, Price THB | | Height: 940 mm | 220130, 21,200.- | GPR flange slide "Atos" with wave
for public playgrounds
| Version | Reference, Price THB | Platform height: 1500 mm
Length: 325 cm | 220200, 28,500.- | GPR flange slide
for public playgrounds
| Version | Reference | Width 650 mm Platform heigth: 1200 mm
Length: 250 cm | 220190 | as above but
Platform height: 1500 mm
Length: 325 cm | 220193 | as above but
Platform height: 1950 mm

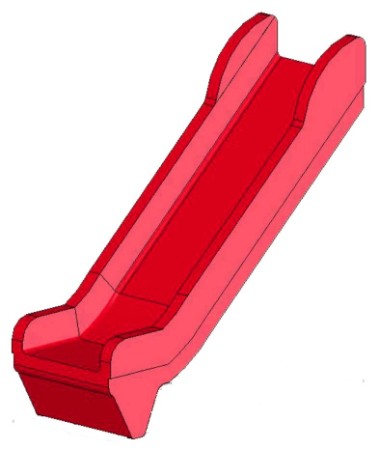

Length: 390 cm | 220197 | PE-Slide "Single"
for public playgrounds
| Version | Reference | Platform height:
125 - 145 cm
Width: 640 mm

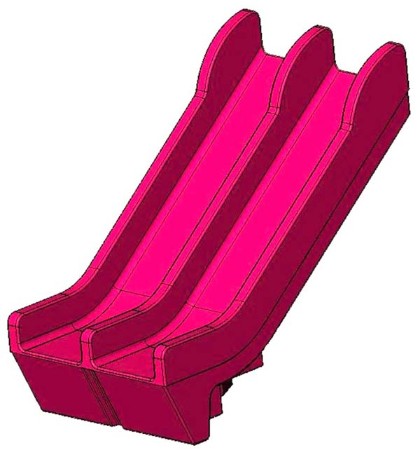

Length: 1950 mm | 220010 | PE-Slide "Double"
for public playgrounds
| Version | Reference | Platformheight:
125 - 145 cm
Width: 1100 mm

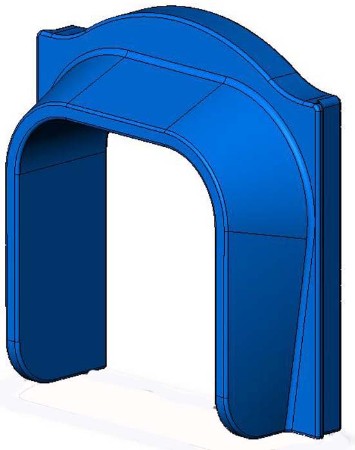

Length: 1696 mm | 220020 | Panel for PE-Slides
| Version | Reference | | for "Single" | 220015 | | for "Double" | 220025 | PE-Slide
for private use only
| Version | Reference | Platform height: 1200 mm Length: 2000 mm
colour: red | 220086 | as above but
colour: blue | 220087 | as above but
colour: green | 220088 | as above but

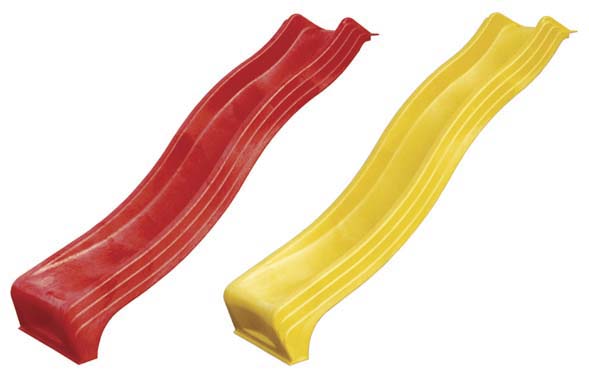

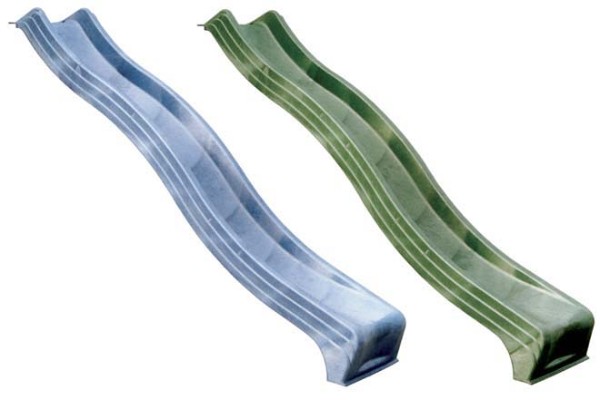

colour: yellow | 220089 | PE-Slide
for private use only
| Version | Reference | Platform height: 1500 mm
Length: 2900 mm
colour: red | 220096 | as above but
colour: blue | 220097 | as above but
colour: green | 220098 | as above but
colour: yellow | 220099 |
|
 |
|
|
