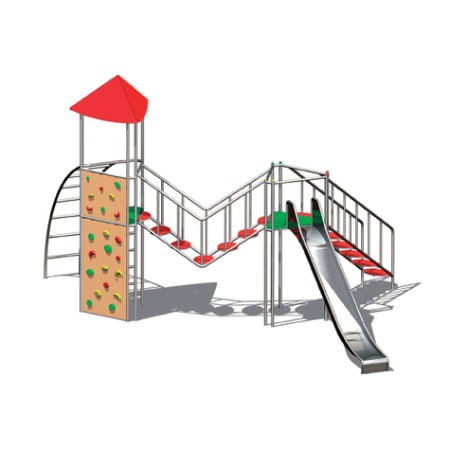

Multiplay equipment »ascendo1 form a« Stainless steelItem-No. on request
Steel, sparkle silver coatedItem-No. 51 7501 101
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 9100 x 7400 mm | | Safer surfacing area: | 67,50 m² | | Extent of the fall zone: | 9100 x 7400 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |
Multiplay equipment »ascendo1 form b«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. 51 7502 101
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 9300 x 8000 mm | | Safer surfacing area: | 74,50 m² | | Extent of the fall zone: | 9300 x 8000 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |
Multiplay equipment »ascendo1 form c«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. 51 7503 101
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 9200 x 6800 mm | | Safer surfacing area: | 63,00 m² | | Extent of the fall zone: | 9200 x 6800 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |

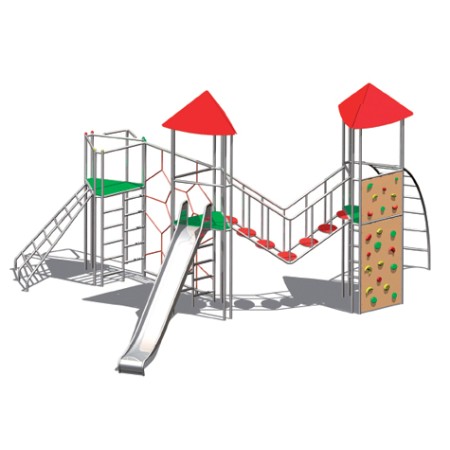

Multiplay equipment »ascendo2 form a«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. on request
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 9900 x 9100 mm | | Safer surfacing area: | 90,00 m² | | Extent of the fall zone: | 9900 x 9100 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |
Multiplay equipment »ascendo2 form b«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. on request
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 9900 x 9500 mm | | Safer surfacing area: | 95,00 m² | | Extent of the fall zone: | 9900 x 9500 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |
Multiplay equipment »ascendo2 form c«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. on request
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 9800 x 9400 mm | | Safer surfacing area: | 90,00 m² | | Extent of the fall zone: | 9800 x 9400 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |
Multiplay equipment »ascendo3 form a«
Stainless steel
Bestell-Nr. on request
Steel, sparkle silver coatedItem-No. 51 7520 101
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 11900 x 11100 mm | | Safer surfacing area: | 132,00 m² | | Extent of the fall zone: | 11900 x 11100 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |
Multiplay equipment »ascendo3 form b«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. 51 7521 101
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 11500 x 11100 mm | | Safer surfacing area: | 128,00 m² | | Extent of the fall zone: | 11500 x 11100 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |
Multiplay equipment »ascendo3 form c«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. 51 7522 101
| Age group: | 6 years | | dimensions (LxWxH): | see drawing | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 11500 x 11100 mm | | Safer surfacing area: | 128,00 m² | | Extent of the fall zone: | 11500 x 11100 mm | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |

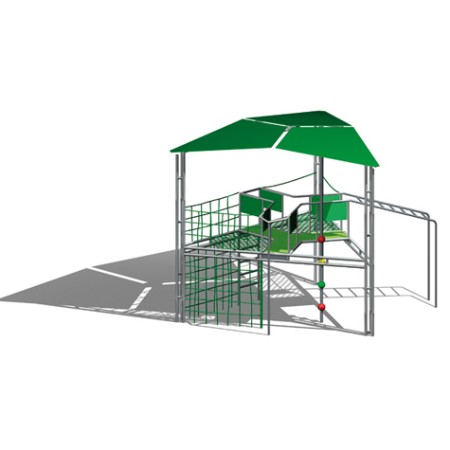

Multiplay equipment »forum«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. 51 7511 101
| Age group: | over 6 years | | dimensions (LxWxH): | 4400 x 4400 x 4300 mm | | Free height of fall: | 2500 mm | | Extent of the fall zone: | 9500 x 8400 mm | | Safer surfacing area: | 72,00 m² | | Recommended surface material: | Sand, bark mulch, gravel, synthetic fall protection | | Scope of delivery: | Complete piece of play equipment | | Safety: | GS/TÜV DIN EN 1176 |

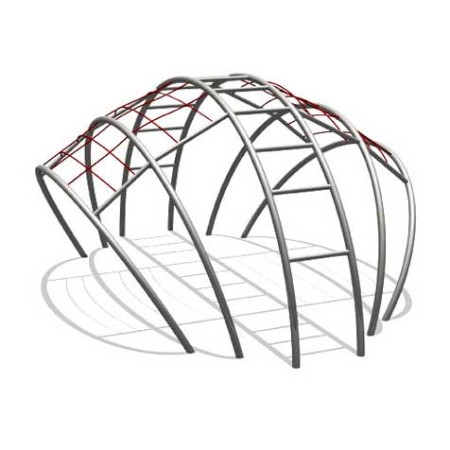

Climbing Equipment »collis«
Stainless steel
Item-No. 51 5511 401
| Age group: | 6 years | | dimensions (LxWxH): | 4000 x 3700 x 1900 mm | | dimensions 2(LxWxH): | 4000 x 3700 x 1900 mm | | Free height of fall: | 1900 mm | | Extent of the fall zone: | 7600 x 7300 mm | | Safer surfacing area: | 49,00 m² | | Recommended surface material: | sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |

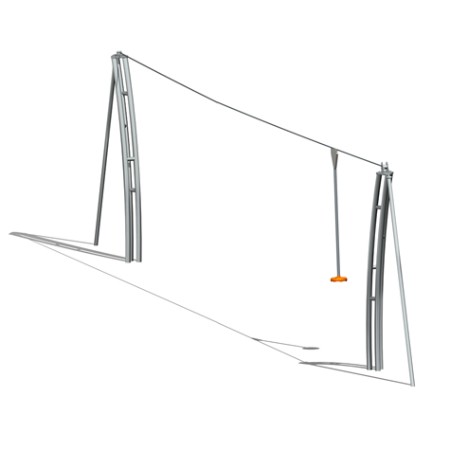

Cableway »funis«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. 51 7021 101
| Age group: | 6 years | | dimensions (LxWxH): | 2400 x 400 x 3400 mm lenght: 30.000 mm | | Free height of fall: | 1000 mm | | Extent of the fall zone: | 30.000 x 4000 mm | | Safer surfacing area: | 120,00 m² | | Recommended surface material: | grass, sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |

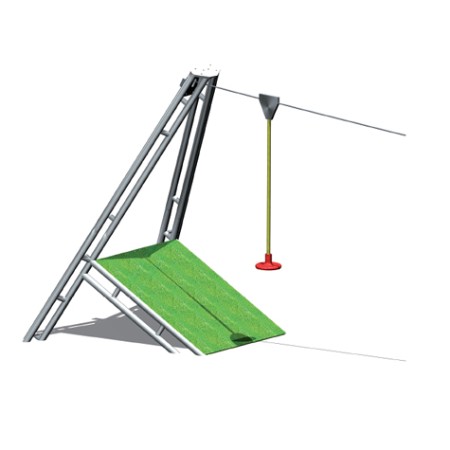

Cableway »mobilis«
Stainless steel
Item-No. on request
Steel, sparkle silver coatedItem-No. 51 7030 101
| Age group: | 6 years | | dimensions (LxWxH): | 3000 x 2600 x 3500 mm length: 30.000 - 50.000 mm | | Free height of fall: | 1000 mm | | Extent of the fall zone: | depense on the lenght | | Safer surfacing area: | depense on the lenght | | Recommended surface material: | grass, sand, bark mulch, gravel, synth. fall protection | | Safety: | GS/TÜV DIN EN 1176 |
|
 |
|
|
